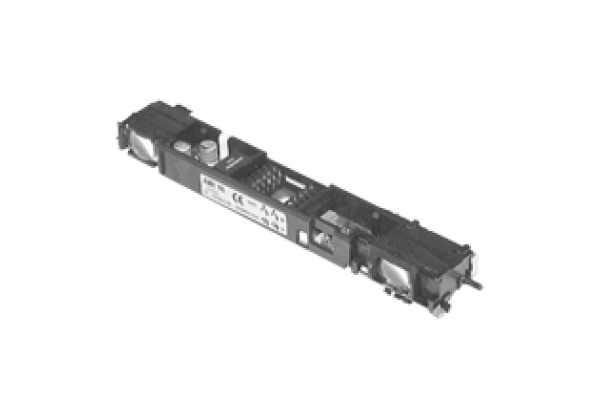

Sensor module AIR16 Module
Brand: Pepperl+Fuchs
Code: AIR16 Module
Sensor module for configurable Topscan switch, Function: Open and secure, Sensor principle: Active infrared scanner
Datasheet excerpt: Technical data of AIR16 Module
| Product Description |
|---|
| Sensor module |
| General specifications | ||
|---|---|---|
| Detection range min. | 0... 1500 mm by background evaluation, 500... 1500 mm by background suppression | |
| Detection range max. | 0... 2500 mm with background evaluation, 500... 2500 mm with background suppression | |
| Light source | IRED | |
| Black-white difference (6 %/90 %) | < 20 % at 2000 mm sensor range | |
| Marking | CE | |
| Operating mode | switching between background suppression/evaluation | |
| Diameter of the light spot | 75 x 75 mm by sensing range 2000 mm | |
| Functional safety related parameters | ||
| MTTFd | 880 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 60 % | |
| Indicators/operating means | ||
| Function indicator | LED red | |
| Control elements | Sensing range adjuster, light-on/dark-on changeover switch, changeover switch for mode of operation Background suppression / Background evaluation ; Adjuster for edge monitoring left/right | |
| Electrical specifications | ||
| Operating voltage | 17... 30 V DC , 18... 28 V AC | |
| No-load supply current | < 100 mA | |
| Output | ||
| Switching type | Light-on/dark-on changeover switch | |
| Signal output | Relay, 1 alternator | |
| Switching voltage | max. 24 V DC , 48 V AC | |
| Switching current | ≤ 1 A | |
| Switching power | 24 W / 55 VA | |
| Response time | 30 ms , 2 s after test | |
| Compliance with standards and directives | ||
| Directive conformity | ||
| EMC Directive 2004/108/EC | EN 61000-6-2:2005 EN 61000-6-3:2007 | |
| Standard conformity | ||
| Standards | EN 62471:2008 | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| UN/ECE Regulation No. 10 (E1) | Type-approval number: 047349 | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Mechanical specifications | ||
| Connection | screw terminals | |
| Suitable series | ||
| Series | TopScan | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270913 |
| ECLASS 12.0 | 27270913 |
| ECLASS 11.0 | 27270913 |
| ECLASS 10.0.1 | 27270913 |
| ECLASS 9.0 | 27270913 |
| ECLASS 8.0 | 27270913 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 5.0 | EC001821 |
| UNSPSC 12.1 | 39121528 |
