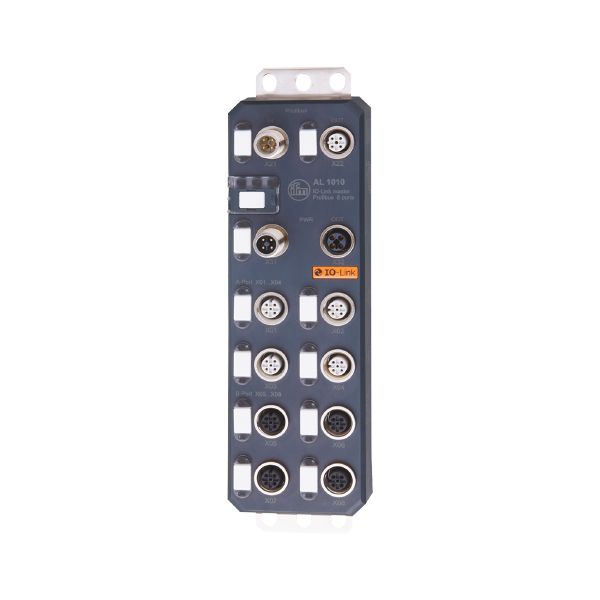

AL1010 - ecomat300-IO-Link master Profibus 8 ports IP 67

Code: AL1010

Reliable transmission of machine data, process parameters and diagnostic data to the controller
For connection of up to eight IO-Link devices
With integrated fieldbus interface
Large operating temperature range and high protection rating
Robust housing for use in harsh industrial environments

Application

Application	I/O modules for field applications
Daisy-chain function	power supply; fieldbus interface

Electrical data

Operating voltage [V]	19...31.2 DC; (US)
Protection class	III
Additional voltage supply [V]	19...31.2 DC; (UA)

Actuator supply UA

Current rating per port [A]	1.6

Sensor supply US

Current rating per port [A]	0.2

Inputs / outputs

Total number of inputs and outputs	12; (configurable)
Number of inputs and outputs	Number of digital inputs: 12; Number of digital outputs: 8

Inputs

Number of digital inputs	12; (IO-Link Port Class A: 4 x 2; IO-Link Port Class B: 4 x 1)
Switching level high [V]	15...30
Switching level low [V]	-3...5
Digital inputs protected against short circuits	yes

Outputs

Number of digital outputs	8; (IO-Link Port Class A: 4 x 1; IO-Link Port Class B: 4 x 1)
Max. current load per output [mA]	200
Short-circuit proof	yes
Actuator supply outputs	24 V DC

Interfaces

Communication interface	IO-Link; PROFIBUS

IO-Link Master

Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.1
Number of ports class A	4
Number of ports class B	4

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	95
Protection	IP 65; IP 67

Tests / approvals

EMC

EN 61000-6-2
EN 61000-4-2 ESD	6 kV contact discharge / 8 kV air discharge
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6

Shock resistance

EN 60068-2-27

30 g 11 ms

Vibration resistance

EN 60068-2-6

5 g

Mechanical data

Weight [g]	577
Materials	housing: PA; socket: brass nickel-plated
Sealing material	FKM

Remarks

For further information please see the operating instructions.

Pack quantity

1 pcs.

Electrical connection - PROFIBUS IN

X21	Connector: M12; coding: B

Electrical connection - PROFIBUS OUT

X22	Connector: M12; coding: B; Sealing: FKM

Electrical connection - Process connection

IO-Link Port Class A X01...X04	Connector: M12; coding: A; Sealing: FKM

Electrical connection - power supply IN

X31	Connector: M12; coding: T

Electrical connection - power supply OUT

X32	Connector: M12; coding: T; Sealing: FKM
