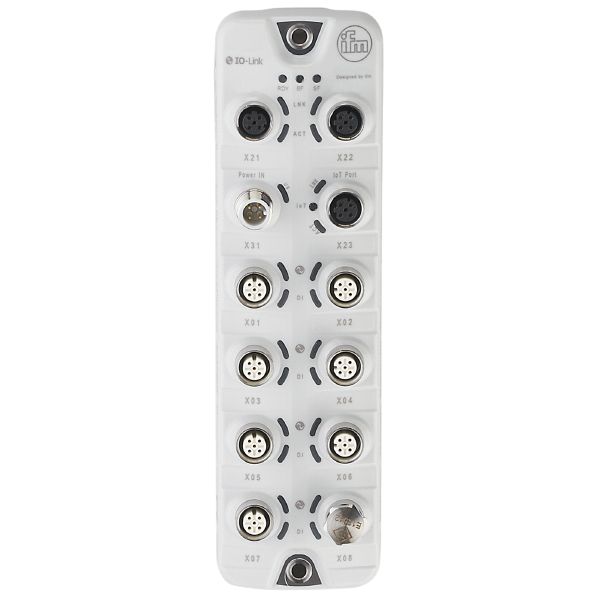

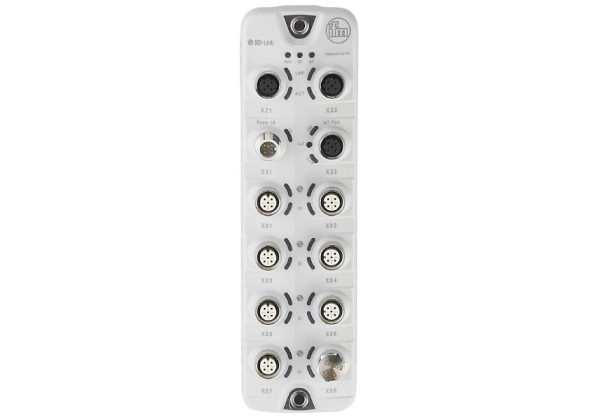

AL1303 IO-Link master with PROFINET interface IO-Link Master DL PN 8P IP69K
Brand: IFM Electronic
Code: AL1303
- Separation between automation network and IT network
- For connection of up to eight IO-Link devices
- Reliable transmission of machine data, process parameters and diagnostic data to the controller
- With ProfiNet interface and separate MQTT JSON interface
- High protection rating for the requirements of the food and beverage industry
Application
| Application | hygienic systems; I/O modules for field applications |
|---|---|
| Daisy-chain function | fieldbus interface |
Electrical data
| Operating voltage [V] | 20...28 DC; (US ; to SELV/PELV) |
|---|---|
| Current consumption [mA] | 300...3900; (US) |
| Protection class | III |
| Max. current load total [A] | 3.6 |
|---|
Inputs / outputs
| Total number of inputs and outputs | 16; (configurable) |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 16; Number of digital outputs: 8 |
Inputs
| Number of digital inputs | 16; (IO-Link Port Class A: 8 x 2) |
|---|---|
| Switching level high [V] | 11...28 |
| Switching level low [V] | 0...5 |
| Digital inputs protected against short circuits | yes |
Outputs
| Number of digital outputs | 8; (IO-Link Port Class A: 8 x 1) |
|---|---|
| Max. current load per output [mA] | 300 |
| Short-circuit proof | yes |
Interfaces
| Communication interface | Ethernet; IO-Link |
|---|
| Transmission standard | 100Base-TX | ||||||
|---|---|---|---|---|---|---|---|
| Transmission rate | 100 MBit/s | ||||||
| Protocol | PROFINET | ||||||
| Factory settings |
| ||||||
| Note on interfaces |
|
| Transmission standard | 10Base-T; 100Base-TX | ||||
|---|---|---|---|---|---|
| Transmission rate | 10 MBit/s; 100 MBit/s | ||||
| Protocol | MQTT JSON | ||||
| Factory settings |
| ||||
| Note on interfaces |
|
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
|---|---|
| IO-Link revision | 1.1 |
| Number of ports class A | 8 |
Operating conditions
| Ambient temperature [°C] | -25...60 | ||||
|---|---|---|---|---|---|
| Storage temperature [°C] | -25...85 | ||||
| Max. relative air humidity [%] | 90 | ||||
| Protection | IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) | ||||
| Protection rating (NEMA 250) | 6P | ||||
| Pollution degree | 2 | ||||
| Chemical media |
|
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| Shock resistance |
| ||||
| Vibration resistance |
| ||||
| MTTF [years] | 78 |
Mechanical data
| Weight [g] | 395 |
|---|---|
| Materials | housing: PA grey; socket: stainless steel (1.4404 / 316L) |
| Sealing material | EPDM |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - Ethernet
| PROFINET X21, X22 | Connector: M12; coding: D; Sealing: EPDM |
|---|
Electrical connection - Process connection
| IO-Link Port Class A X01...X08 | Connector: M12; coding: A; Sealing: EPDM |
|---|
Electrical connection - power supply
| X31 | Connector: M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AL1303-00 — 09.06.2023 —
