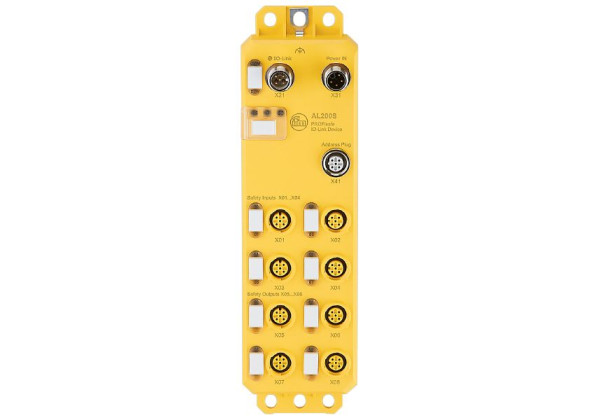

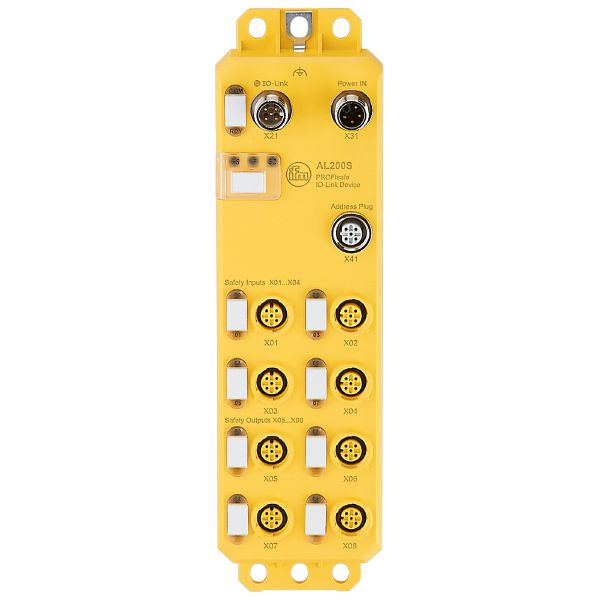

AL200S PROFIsafe IO-Link module PROFIsafe IOL Device 8P IP67
Brand: IFM Electronic
Code: AL200S
- Safety product in combination with IO-Link
- Safe I/O module for PROFIsafe with safe inputs and outputs
- Connection of safe mechanical contacts and OSSD sensors possible
- PROFIsafe telegrams tunnelled via IO-Link
- Separate 24 V power supply of the outputs via standardised M12 L coding for high current rating
Application
| Design | only for operation with IO-Link masters AL140x, AL1304 to AL1307 and Siemens PLCs S7-1200 and S7-1500 (except software controller and open controller) |
|---|---|
| Application | I/O modules for field applications |
Electrical data
| Operating voltage [V] | 19.2...30.2 DC; (US ; to SELV/PELV) |
|---|---|
| Current consumption [mA] | 67; (US) |
| Protection class | III |
| Additional voltage supply [V] | 19.2...30.2 DC; (UA) |
| Max. current consumption from additional supply [mA] | 34; (UA) |
| Max. current load total [A] | 6 |
|---|---|
| Current rating per port [A] | 2 |
Inputs / outputs
| Total number of inputs and outputs | 12 |
|---|
Inputs
| Total number of inputs | 8 |
|---|---|
| Switching level high [V] | 11...30 |
| Switching level low [V] | -30...5 |
| Digital inputs protected against short circuits | yes |
Outputs
| Total number of outputs | 4 |
|---|---|
| Short-circuit proof | yes |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Supported DeviceIDs |
|
| Transmission type | COM3 (230,4 kBaud) |
|---|---|
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| SIO mode | no |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Max. relative air humidity [%] | 75 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
| ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
| ||||||||||||
| Vibration resistance |
|
Safety classification
| Mission time TM [h] | 175200 | |
|---|---|---|
| Mission time TM (additional indication) |
|
| Complies with the requirements |
| |||
|---|---|---|---|---|
| PFH [1/h] | 1E-08 | |||
| PFD [1/h] | 1E-04 |
| Complies with the requirements |
| |||
|---|---|---|---|---|
| PFH [1/h] | 1E-09 | |||
| PFD [1/h] | 1E-05 |
Mechanical data
| Weight [g] | 408.3 |
|---|---|
| Materials | housing: PA; socket: brass nickel-plated |
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - Address Plug
| X41 | Connector: M12; coding: A |
|---|
Electrical connection - IO-Link
| X21 | Connector: M12; coding: A |
|---|
Electrical connection - Power IN
| X31 | Connector: M12; coding: L |
|---|
Electrical connection - Safety Inputs
| X01...X04 | Connector: M12; coding: A |
|---|
Electrical connection - Safety Outputs
| X05...X08 | Connector: M12; coding: A |
|---|
