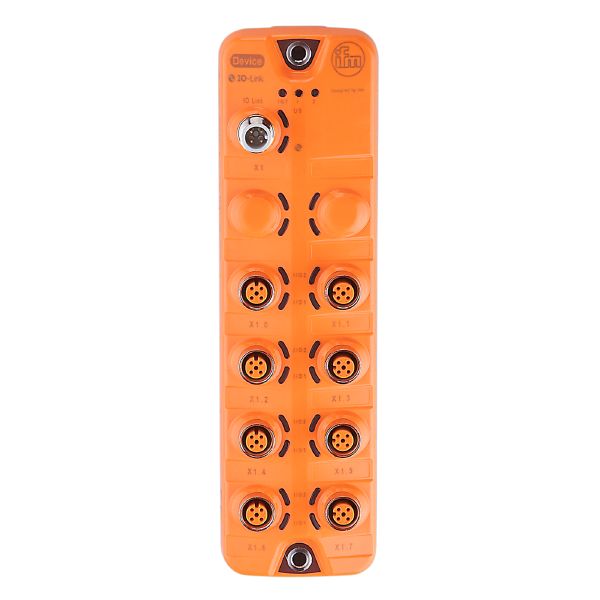

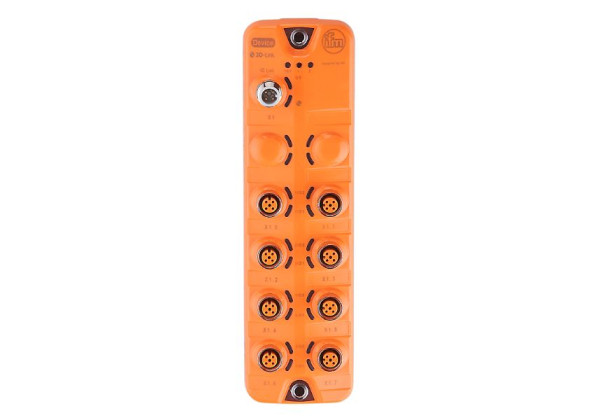

AL2321 IO-Link input/output module IOL MOD SL 8XDX/DX A M12 IP67
Brand: IFM Electronic
Code: AL2321
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | 1100; (US) |
| Protection class | III |
Inputs / outputs
| Total number of inputs and outputs | 16 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 16; Number of digital outputs: 16 |
Inputs
| Number of digital inputs | 16; (configurable) |
|---|---|
| Input circuit of digital inputs | PNP; (type 3 (IEC 61131-2)) |
| Sensor supply of the inputs | US |
| Power supply [V] | 18...30 |
| Input current High [mA] | 2...15 |
| Input current Low [mA] | 0...1.5 |
| Switching level high [V] | 11...28 |
| Switching level low [V] | 0...5 |
Outputs
| Number of digital outputs | 16; (configurable) |
|---|---|
| Max. current load per output [mA] | 1000 |
| Max. current load outputs total [A] | 1 |
| Short-circuit protection | yes |
| Actuator supply outputs | US |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| SDCI standard | IEC 61131-9 | ||||
| Transmission type | COM3 (230,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SIO mode | no | ||||
| Required master port type | A | ||||
| Min. process cycle time [ms] | 4 | ||||
| Supported DeviceIDs |
| ||||
| Note |
|
Operating conditions
| Ambient temperature [°C] | -25...60 | ||||
|---|---|---|---|---|---|
| Storage temperature [°C] | -25...70 | ||||
| Max. relative air humidity [%] | 90 | ||||
| Max. height above sea level [m] | 2000 | ||||
| Protection | IP 65; IP 67 | ||||
| Protection rating (NEMA 250) | 6P | ||||
| Pollution degree | 2 | ||||
| Chemical media |
|
Tests / approvals
| EMC |
| ||||||
|---|---|---|---|---|---|---|---|
| Shock resistance |
| ||||||
| Vibration resistance |
| ||||||
| MTTF [years] | 46 |
Mechanical data
| Weight [g] | 435.932 |
|---|---|
| Dimensions [mm] | 26 x 59.3 x 208 |
| Materials | housing: PA orange; socket: brass nickel-plated |
| Sealing material | FKM |
Displays / operating elements
| Display |
|
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - IO-Link
| X1 | Connector: 1 x M12; coding: A |
|---|
Electrical connection - inputs / outputs
| X1.0...X1.7 | Connector: 8 x M12; coding: A; Sealing: FKM |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AL2321-00 — 26.07.2023 —
