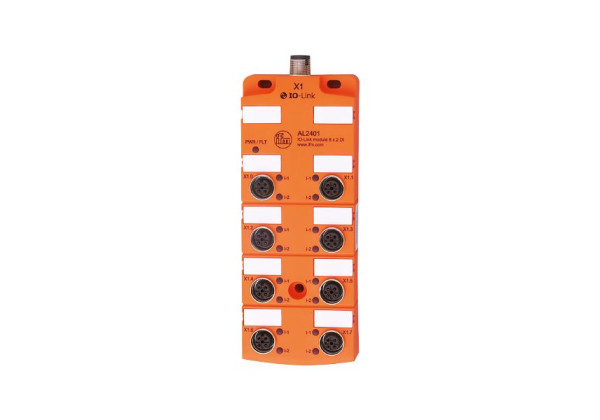

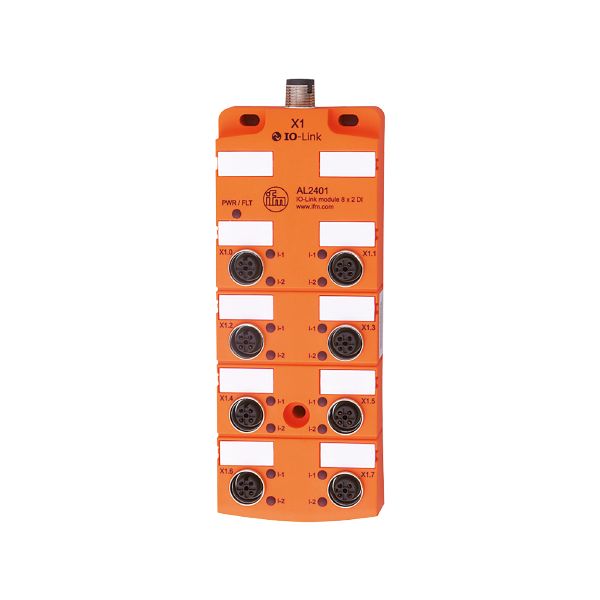

AL2401 - ecomat300-IO-Link module 8 x 2 DI IP 67
Brand: IFM Electronic
Code: AL2401
- For the simple connection of binary sensors to any IO-Link master
- Data and energy transmission also possible with unscreened connection cable
- Clearly visible LEDs for displaying operation, switching status and error
- Eight ports with two binary inputs each for sixteen sensors
- Robust design with full potting for use in harsh industrial environments
Electrical data
| Operating voltage [V] | 18...30 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption [mA] | < 50 |
| Current rating per port [A] | 0.1 |
|---|
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 16 |
|---|
Inputs
| Number of digital inputs | 16; (8 x 2) |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | IO-Link |
| Input current limitation [mA] | 15 |
| Input current High [mA] | 6...10 |
| Input current Low [mA] | 0...2 |
| Switching level high [V] | > 11 |
| Digital inputs protected against short circuits | yes |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Supported DeviceIDs |
|
| Transmission type | COM2 (38,4 kBaud) |
|---|---|
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| SIO mode | no |
| Process data analogue | 1 |
| Process data binary | 24 |
| Min. process cycle time [ms] | 2.9 |
Operating conditions
| Ambient temperature [°C] | -25...70 | ||||
|---|---|---|---|---|---|
| Protection | IP 67 | ||||
| Protection rating (NEMA 250) | 6P | ||||
| Chemical media |
|
Tests / approvals
| EMC |
| ||||||
|---|---|---|---|---|---|---|---|
| MTTF [years] | 164 |
Mechanical data
| Weight [g] | 382.5 |
|---|---|
| Materials | PA; socket: brass nickel-plated; O-ring: FKM |
| Sealing material | FKM |
Displays / operating elements
| Display |
|
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Remarks |
| |||
|---|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - IO-Link
| Connector: M12; coding: A |
Electrical connection - Process connection
| Connector: M12; coding: A; Sealing: FKM |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AL2401-00 — 29.08.2016 —
