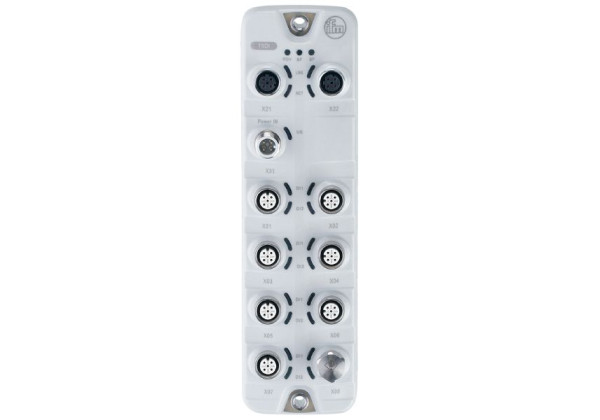

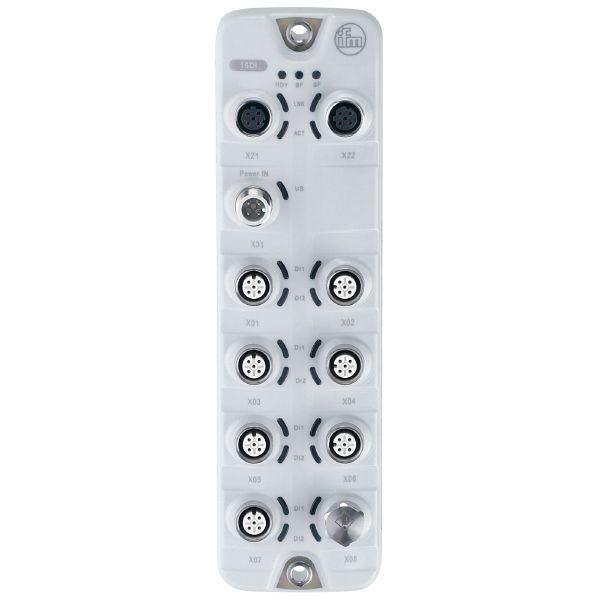

AL4023 Ethernet module with EtherNet/IP interface ETH Module SL EIP 16DI IP69K
Brand: IFM Electronic
Code: AL4023
- Fieldbus module with digital inputs
- Direct connection of sensors to the fieldbus for a clear wiring structure
- High-frequency counter function integrated in the Ethernet module
- Robust housing for use in the food industry
- High protection rating for the requirements of the food and beverage industry
Application
| Application | hygienic systems; I/O modules for field applications |
|---|---|
| Daisy-chain function | fieldbus interface |
Electrical data
| Operating voltage [V] | 20...28 DC; (US ; to SELV/PELV) |
|---|---|
| Current consumption [mA] | 200...3900; (cULus: 200... 3500; US) |
| Protection class | III |
| Max. current load total [A] | 3.6 |
| Overall current rating (UL) [A] | 3.2 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 16 |
|---|
Inputs
| Number of digital inputs | 16; (type 2 according to IEC 61131-2) |
|---|---|
| Switching level high [V] | 11...30 |
| Switching level low [V] | 0...5 |
| Digital inputs protected against short circuits | yes |
Software / programming
| Parameter setting options | counter function | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Functions and parameters |
|
Interfaces
| Communication interface | Ethernet |
|---|
| Transmission standard | 10Base-T; 100Base-TX | ||||
|---|---|---|---|---|---|
| Transmission rate | 10 MBit/s; 100 MBit/s | ||||
| Protocol | EtherNet/IP | ||||
| Factory settings |
| ||||
| Note on interfaces |
|
Operating conditions
| Ambient temperature [°C] | -25...60 | ||||
|---|---|---|---|---|---|
| Storage temperature [°C] | -25...85 | ||||
| Max. relative air humidity [%] | 90 | ||||
| Protection | IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) | ||||
| Protection rating (NEMA 250) | 6P | ||||
| Pollution degree | 2 | ||||
| Chemical media |
|
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| Shock resistance |
| ||||
| Vibration resistance |
| ||||
| MTTF [years] | 130 |
Mechanical data
| Weight [g] | 419.9 |
|---|---|
| Materials | housing: PA grey; socket: stainless steel (1.4404 / 316L) |
| Sealing material | EPDM |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - Ethernet
| IN / OUT X21, X22 | Connector: M12; coding: D; Sealing: EPDM |
|---|
Electrical connection - Process connection
| Digital Input X01...X08 | Connector: M12; coding: A; Sealing: EPDM |
|---|
Electrical connection - power supply
| X31 | Connector: M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AL4023-00 — 03.11.2023 —
