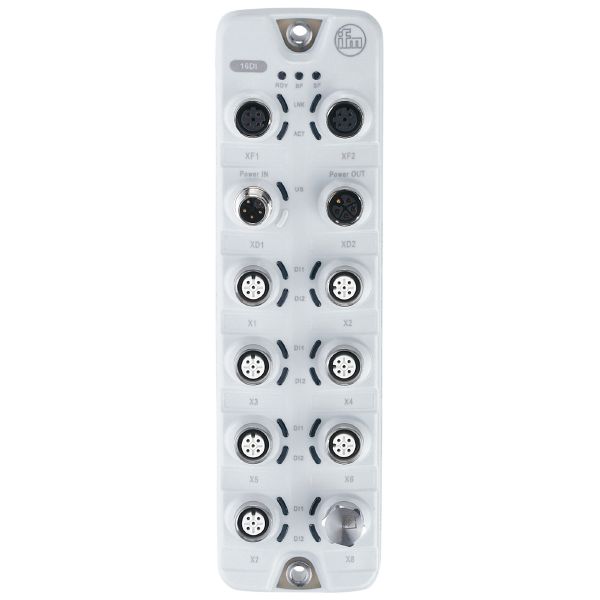

AL4103 Ethernet module with PROFINET interface ETH Module PFL PN 16DI IP69K

Code: AL4103

Fieldbus module with digital inputs
Direct connection of sensors to the fieldbus for a clear wiring structure
High-frequency counter function integrated in the Ethernet module
Robust housing for use in the food industry
High protection rating for the requirements of the food and beverage industry

Application

Application	hygienic systems; I/O modules for field applications
Daisy-chain function	power supply; fieldbus interface

Electrical data

Operating voltage [V]	20...28 DC; (US ; to SELV/PELV)
Current consumption [mA]	200...3900; (cULus: 200... 3500; US)
Protection class	III
Max. current load total [A]	3.6
Overall current rating (UL) [A]	3.2

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 16

Inputs

Number of digital inputs	16; (type 2 according to IEC 61131-2)
Switching level high [V]	11...30
Switching level low [V]	0...5
Digital inputs protected against short circuits	yes

Software / programming

Parameter setting options

counter function

Functions and parameters

function	CTU (Up Counter), CTD (Down Counter), CTUD (Up-Down Counter), CTDIR (Direction Counter)
number	8 (1 counter for each port)
count frequency	4500 Hz
main counter	32 Bit (0…4.294.967.295)
batch counter	16 Bit (0…65.535)

Interfaces

Communication interface	Ethernet

Ethernet - PROFINET

Transmission standard

100Base-TX

Transmission rate

100 MBit/s

Protocol

PROFINET

Factory settings

IP address: 0.0.0.0

subnet mask: 0.0.0.0

gateway IP address: 0.0.0.0

MAC address: see type label

Note on interfaces

CC-C (Conformance Class C) (IRT-Switch)

S2 redundancy

Netload Class III

CiR (Configuration in Run)

SNMP (Simple Network Management Protocol)

MRP (Media Redundancy Protocol)

Supported network topologies: line

ring

Operating conditions

Ambient temperature [°C]

-25...60

Storage temperature [°C]

-25...85

Max. relative air humidity [%]

Protection

IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K)

Protection rating (NEMA 250)

Pollution degree

Chemical media

ISO 16750-5	HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1	AA

Tests / approvals

EMC

EN 61000-6-2
EN 61000-6-4

Shock resistance

DIN EN 60068-2-27

Vibration resistance

DIN EN 60068-2-64 2009-04
DIN EN 60068-2-6 2008-10

MTTF [years]

129

Mechanical data

Weight [g]	437.2
Materials	housing: PA grey; socket: stainless steel (1.4404 / 316L)
Sealing material	EPDM

Accessories

Items supplied

Protective cap: 1 x M12, stainless steel, E12542

Remarks

For further information please see the operating instructions.

Pack quantity

1 pcs.

Electrical connection - Ethernet

IN / OUT XF1, XF2	Connector: M12; coding: D; Sealing: EPDM

Electrical connection - Process connection

Digital Input X1...X8	Connector: M12; coding: A; Sealing: EPDM

Electrical connection - power supply IN

XD1	Connector: M12; coding: L

Electrical connection - power supply OUT

XD2	Connector: M12; coding: L; Sealing: EPDM
