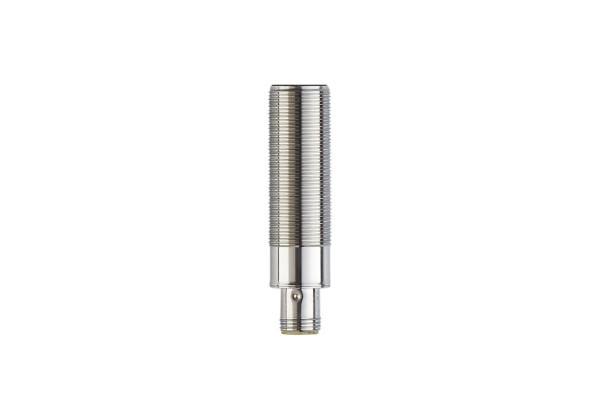

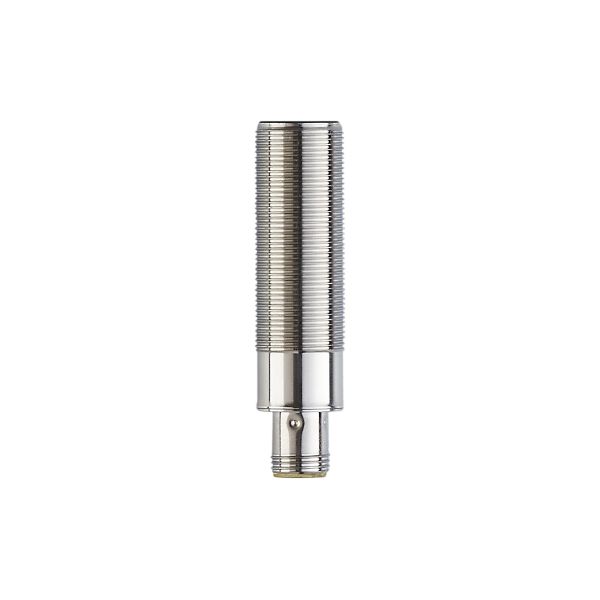

ANT424 RFID read/write head HF DTRHF GBRWIDUS03
Brand: IFM Electronic
Code: ANT424
- For the reliable identification of ID tags on workpiece carriers and products
- Robust stainless steel housing for applications in mounting, feeding and handling technology
- High protection rating for the requirements of harsh industrial environments
- RFID read/write head HF for flush mounting
- For the connection to RFID evaluation units LF/HF using the tried-and-tested M12 connection
Application
| Application | detection of objects on transport equipment | |
|---|---|---|
| Radio approval for | USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Ukraine | |
| Note on radio approval |
|
Electrical data
| Operating voltage [V] | 19.2...28.8 DC; (supply only via the DTE10x evaluation unit (to EN 60950-1)) |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Operating frequency [MHz] | 13,56 |
| RFID standard | ISO 15693 |
Detection zone
| Distance write/read head front [mm] | 100 | |||
|---|---|---|---|---|
| Distance write/read head side [mm] | 60 | |||
| Distance to the ID tag [mm] |
|
Interfaces
| Communication interface | DATA / DTE10x |
|---|
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67; IP 69K |
Tests / approvals
| Shock resistance |
| ||
|---|---|---|---|
| Vibration resistance |
|
Mechanical data
| Weight [g] | 108.85 |
|---|---|
| Housing | cylindrical |
| Mounting | flush mountable |
| Dimensions [mm] | M18 x 1 / L = 70 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel; Protective cover: PPS; LED window: PEI |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ANT424-00 — 05.07.2023 —
