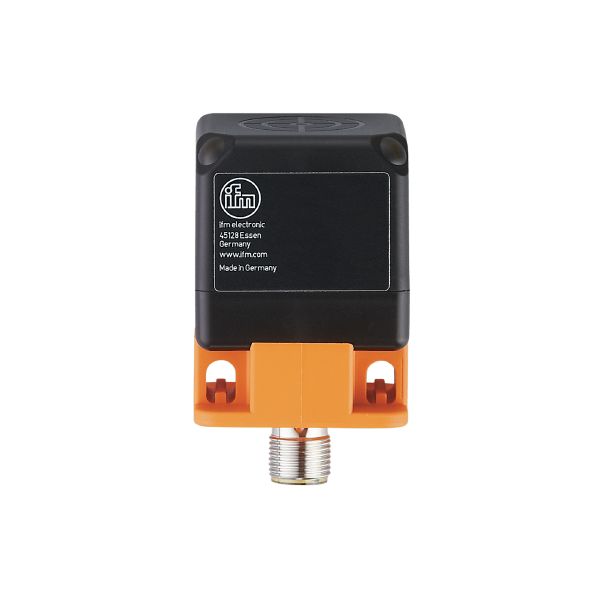

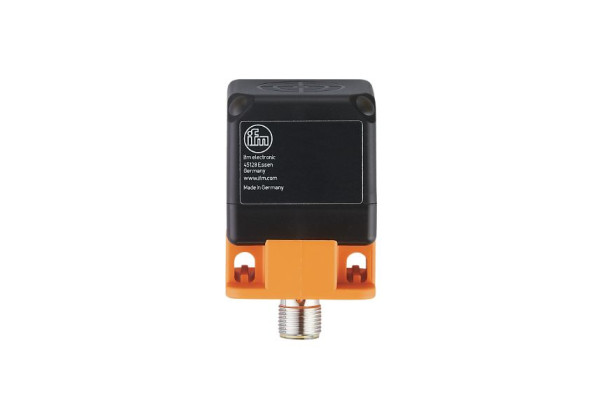

ANT513 - efector190-DTRHF MCRWIDUS03

Brand: IFM Electronic

Code: ANT513

For the reliable identification of ID tags on workpiece carriers and products
Robust housing for applications in mounting, feeding and handling technology
High protection rating for the requirements of harsh industrial environments
Large read distance
Five positions of the sensing face selectable

Application

detection of objects on transport equipment

Radio approval for

USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; South Korea; Singapore; Ukraine; Malaysia

Note on radio approval

The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Electrical data

Operating voltage [V]	24 DC
Current consumption [mA]	< 50
Protection class	III
Operating frequency [MHz]	13,56
RFID standard	ISO 15693

Detection zone

Travel speed [m/s]

< 1

Distance write/read head front [mm]

250

Distance write/read head side [mm]

300

Distance to the ID tag [mm]

read	:	≤ 60
static
write	:	≤ 60
static
reference tag	:	E80370

Interfaces

Communication interface	DATA / DTE10x

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...80
Protection	IP 67; IP 69K

Tests / approvals

Shock resistance

EN 60068-2-29	40 g 6 ms
EN 60068-2-27	50 g 11 ms

Vibration resistance

EN 60068-2-6

20 g 10...55 Hz

MTTF [years]

557

Mechanical data

Weight [g]	165.55
Housing	rectangular
Sensing face	5 positions selectable
Mounting	flush mountable
Dimensions [mm]	40 x 40 x 54
Materials	housing: PA; metal parts: stainless steel

Displays / operating elements

Display

operation	1 x LED, green
tag communication	1 x LED, yellow

Remarks

For the distances to other ID tags see the respective data sheet (E803xx)

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12, rotatable, locking; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ANT513-00 — 05.07.2023 —
