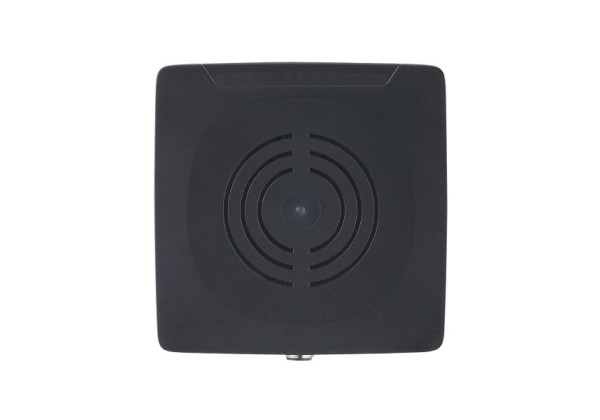

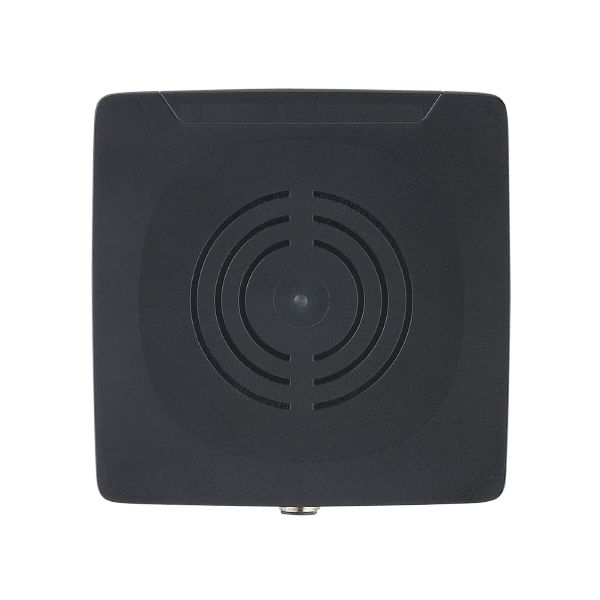

ANT600 RFID read/write head HF DTRHF HLRWIDUS03

Brand: IFM Electronic

Code: ANT600

Application

detection of objects on transport equipment

Radio approval for

EU/RED; Japan; Australia; China; Taiwan; India; Singapore; Ukraine; Malaysia

Note on radio approval

The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Electrical data

Operating voltage [V]	19.2...28.8 DC; (supply only via the DTE10x evaluation unit)
Current consumption [mA]	< 150
Protection class	III
Operating frequency [MHz]	13,56

Detection zone

Distance write/read head front [mm]

400

Distance write/read head side [mm]

600

Distance to the ID tag [mm]

referred to the ID tag E80384	:	< 190
referred to an ISO card E80407	:	< 230

Interfaces

Communication interface	DATA / DTE10x

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

Shock resistance

EN 60068-2-27	40 g 6 ms / bump
EN 60068-2-27	50 g 11 ms / single shock

Vibration resistance

EN 60068-2-6

2 g 10...150 Hz

UL approval

Ta	-20...60 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
File number UL	E205959

Mechanical data

Weight [g]	450
Dimensions [mm]	120 x 50 x 113
Materials	PBT; PC; stainless steel

Displays / operating elements

Display

operation	1 x LED, green
tag communication	4 x LED bar display, yellow signal strength ID tag

Remarks

For the distances to other ID tags see the respective data sheet (E803xx)

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
