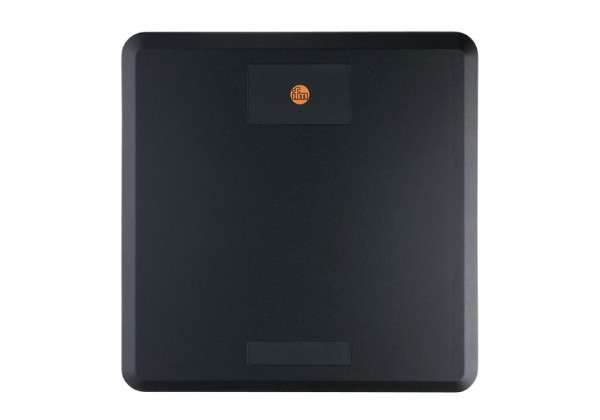

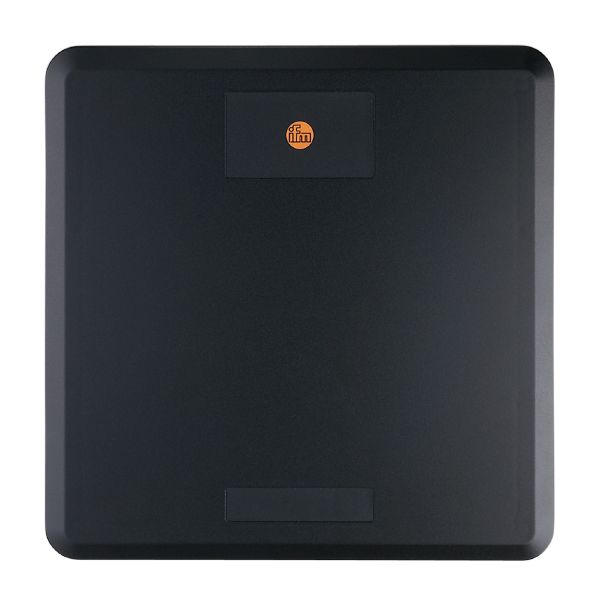

ANT860 RFID UHF antenna DTRUHFE_AGRWKOTN04
Brand: IFM Electronic
Code: ANT860
Electrical data
| Operating frequency [MHz] | 865...868 (ETSI); (India: 865...867 MHz) |
|---|---|
| Antenna connections | 1; (TNC socket) |
| Polarisation | circular |
| Transmission power ERP [mW] | 1995 |
| Antenna gain [dB] | 8.5 |
| Impedance [Ω] | 50 |
Detection zone
| Angle of aperture [°] | 65 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...70 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 67 |
Mechanical data
| Weight [g] | 2395.5 |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 300 x 300 x 79 |
| Materials | housing: aluminium; TNC socket: brass / PTFE; Protective cover: plastics; |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ANT860-00 — 15.04.2019 —
