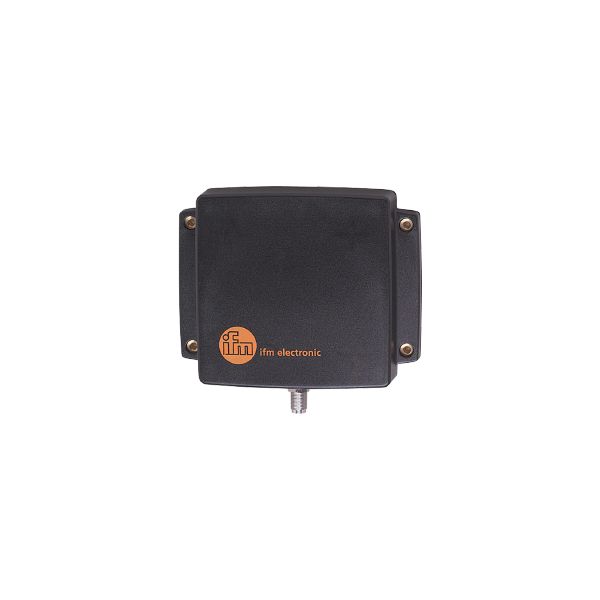

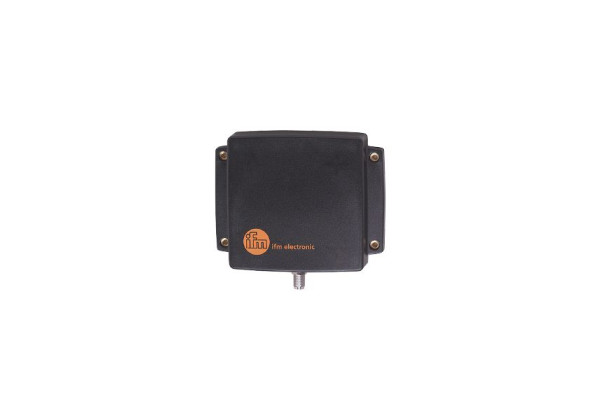

ANT920 - efector190-DTRUHFA ADRWETTN04
Brand: IFM Electronic
Code: ANT920
- For the reliable identification of UHF ID tags in production and logistics
- Compact housing for use in the near and far field
- Reading ranges up to 2 metres
- High protection rating for the requirements of harsh industrial environments
Electrical data
| Operating frequency [MHz] | 902...928 |
|---|---|
| Antenna connections | 1; (TNC socket) |
| Antenna gain [dB] | 2.5 |
| Impedance [Ω] | 50 |
Operating conditions
| Ambient temperature [°C] | -20...55 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 67 |
Mechanical data
| Weight [g] | 484.5 |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 126 x 37 x 156 |
| Materials | housing: plastics; TNC socket: brass / PTFE |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ANT920-00 — 25.09.2014 —
