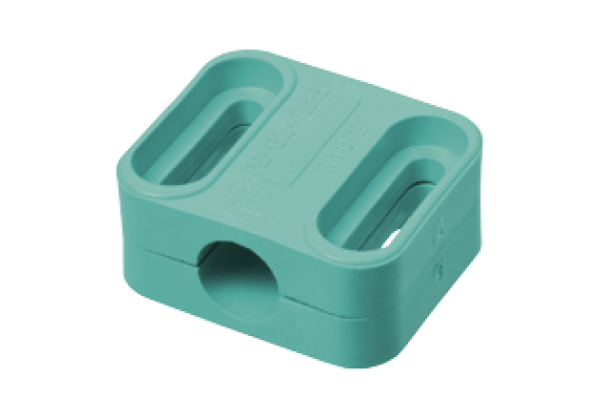

Mounting flange BF 11
Brand: Pepperl+Fuchs
Code: BF 11
Mounting flange, 11 mm
Datasheet excerpt: Technical data of BF 11
| Product Description |
|---|
| Mounting flange, 11 mm |
| General specifications | ||
|---|---|---|
| Inside diameter | 11 mm | |
| Ambient conditions | ||
| Ambient temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Material | PBT | |
| Tightening torque, fastening screws | max. 1 Nm | |
| Dimensions | 30 mm x 36 mm x 17 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
