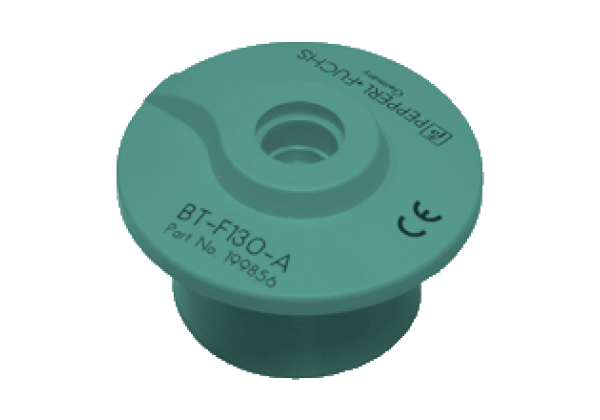

Activator BT-F130-A
Brand: Pepperl+Fuchs
Code: BT-F130-A
Actuator for F130 series, Suitable for mounting on valve actuators for use in valve technology
Datasheet excerpt: Technical data of BT-F130-A
| Product Description |
|---|
| Actuator for F130 series |
| Mechanical specifications | ||
|---|---|---|
| Shaft diameter | < 27.5 mm | |
| Shaft height | 20 mm | |
| Material | ||
| Housing | Mounting component: PBT | |
| Spacer disk | PP (1 unit, 5.5 mm strong) | |
| Stopper cap | PBT (1 unit black) | |
| Mounting screw | for activator: 1.4305 / AISI 303 (1 piece M6 x 25) | |
| Mass | 25 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274002 |
| ECLASS 12.0 | 27274002 |
| ECLASS 11.0 | 27270103 |
| ECLASS 10.0.1 | 27270103 |
| ECLASS 9.0 | 27270103 |
| ECLASS 8.0 | 27270191 |
| ECLASS 5.1 | 27270191 |
| ETIM 9.0 | EC001487 |
| ETIM 8.0 | EC001487 |
| ETIM 7.0 | EC001487 |
| ETIM 6.0 | EC001487 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31251509 |
