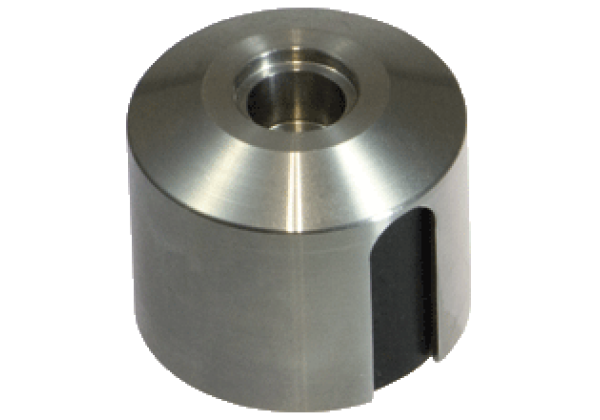

Activator BT32XAS
Brand: Pepperl+Fuchs
Code: BT32XAS
Datasheet excerpt: Technical data of BT32XAS
| Product Description |
|---|
| Activator for F25 series |
| General specifications | ||
|---|---|---|
| Ring diameter | max. 40 mm | |
| Spring ring height | max. 6 mm | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Mechanical specifications | ||
| Shaft diameter | < 31 mm | |
| Shaft height | 20 mm | |
| Mounting hole pattern | 30 x 80 mm | |
| Material | ||
| Housing | 1.4057 | |
| Stopper cap | PBT (1 unit black) | |
| Mounting screw | Stainless steel 1.4305 / AISI 303 | |
| Mass | 200 g | |
| Tightening torque, fastening screws | 1.5 Nm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274002 |
| ECLASS 12.0 | 27274002 |
| ECLASS 11.0 | 27270103 |
| ECLASS 10.0.1 | 27270103 |
| ECLASS 9.0 | 27270103 |
| ECLASS 8.0 | 27270191 |
| ECLASS 5.1 | 27270191 |
| ETIM 9.0 | EC001487 |
| ETIM 8.0 | EC001487 |
| ETIM 7.0 | EC001487 |
| ETIM 6.0 | EC001487 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31251509 |
