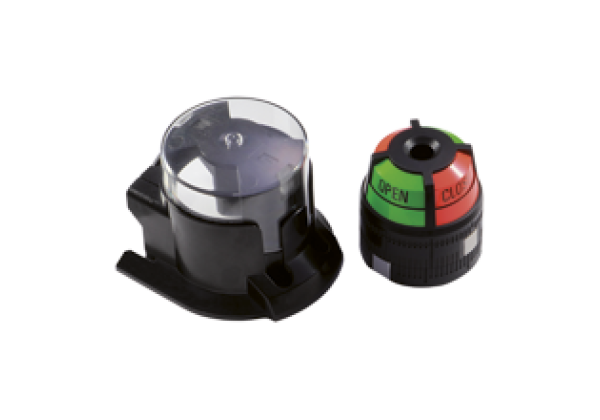

Activator BT65-F31K2-RG-EN-01
Brand: Pepperl+Fuchs
Code: BT65-F31K2-RG-EN-01
Datasheet excerpt: Technical data of BT65-F31K2-RG-EN-01
| Product Description |
|---|
| Activator for F31K2 series including protective housing |
| General specifications | ||
|---|---|---|
| Ring diameter | max. 65 mm | |
| Spring ring height | max. 6 mm | |
| Nominal ratings | ||
| Valve status indicator | red = CLOSED green = OPEN | |
| Ambient conditions | ||
| Ambient temperature | -40... 75 °C (-40... 167 °F) | |
| Mechanical specifications | ||
| Shaft diameter | ≤ 49 mm | |
| Shaft height | 20 mm and 30 mm | |
| Mounting hole pattern | 30 x 80 mm | |
| Material | ||
| Housing | PC | |
| Actuator | PA | |
| Spacer disk | PA (1 unit, 10 mm strong) | |
| Mounting screw | Stainless steel 1.4401 / AISI 316 | |
| Activation target | Stainless steel 1.4305 / AISI 303 (integrated) | |
| General information | ||
| Scope of delivery | 1 screw M6 x 30 1 screw M6 x 40 1 Activator for F31K2 series 1 Distance disc 1 Protective cover Fixing screws | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274002 |
| ECLASS 12.0 | 27274002 |
| ECLASS 11.0 | 27270103 |
| ECLASS 10.0.1 | 27270103 |
| ECLASS 9.0 | 27270103 |
| ECLASS 8.0 | 27270191 |
| ECLASS 5.1 | 27270191 |
| ETIM 9.0 | EC001487 |
| ETIM 8.0 | EC001487 |
| ETIM 7.0 | EC001487 |
| ETIM 6.0 | EC001487 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31251509 |
