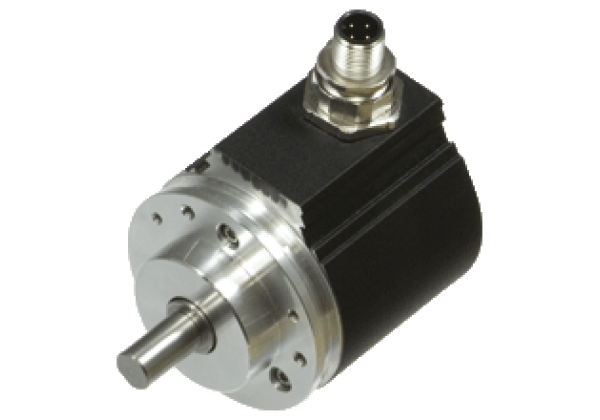

Multiturn absolute rotary encoder BVM58
Brand: Pepperl+Fuchs
Code: BVM58
Industrial standard housing ∅58 mm, 16 Bit multiturn, Output code: gray and binary, Transfer of position data with 4 AS-Interface slaves, Parameterization and addressing via AS-Interface
Datasheet excerpt: Technical data of BVM58
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Device type | Multiturn absolute rotary encoder | |
| Electrical specifications | ||
| Operating voltage | 29.5... 31.6 V DC | |
| No-load supply current | max. starting current 155 mA , operating current max. 85 mA | |
| Linearity | ± 1 LSB | |
| Output code | programmable, Gray code, binary code | |
| Code course (counting direction) | programmable, cw ascending (clockwise rotation, code course ascending) cw descending (clockwise rotation, code course descending) | |
| Interface | ||
| Interface type | AS-Interface | |
| Resolution | ||
| Overall resolution | See table, max. 16 Bit | |
| Transfer rate | max. 0.167 MBit/s | |
| Standard conformity | AS-Interface | |
| Connection | ||
| Connector | type V1, M12, 4-pin | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP65 | |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 11 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Ambient conditions | ||
| Operating temperature | -20... 70 °C (-4... 158 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Material | housing: powder coated aluminum flange: aluminum shaft: stainless steel | |
| Mass | approx. 360 g | |
| Rotational speed | max. 6000 min -1 | |
| Moment of inertia | 30 gcm2 | |
| Starting torque | ≤ 2 Ncm | |
| Shaft load | ||
| Axial | 40 N | |
| Radial | 60 N | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270502 |
| ECLASS 12.0 | 27270502 |
| ECLASS 11.0 | 27270502 |
| ECLASS 10.0.1 | 27270502 |
| ECLASS 9.0 | 27270502 |
| ECLASS 8.0 | 27270502 |
| ECLASS 5.1 | 27270502 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
