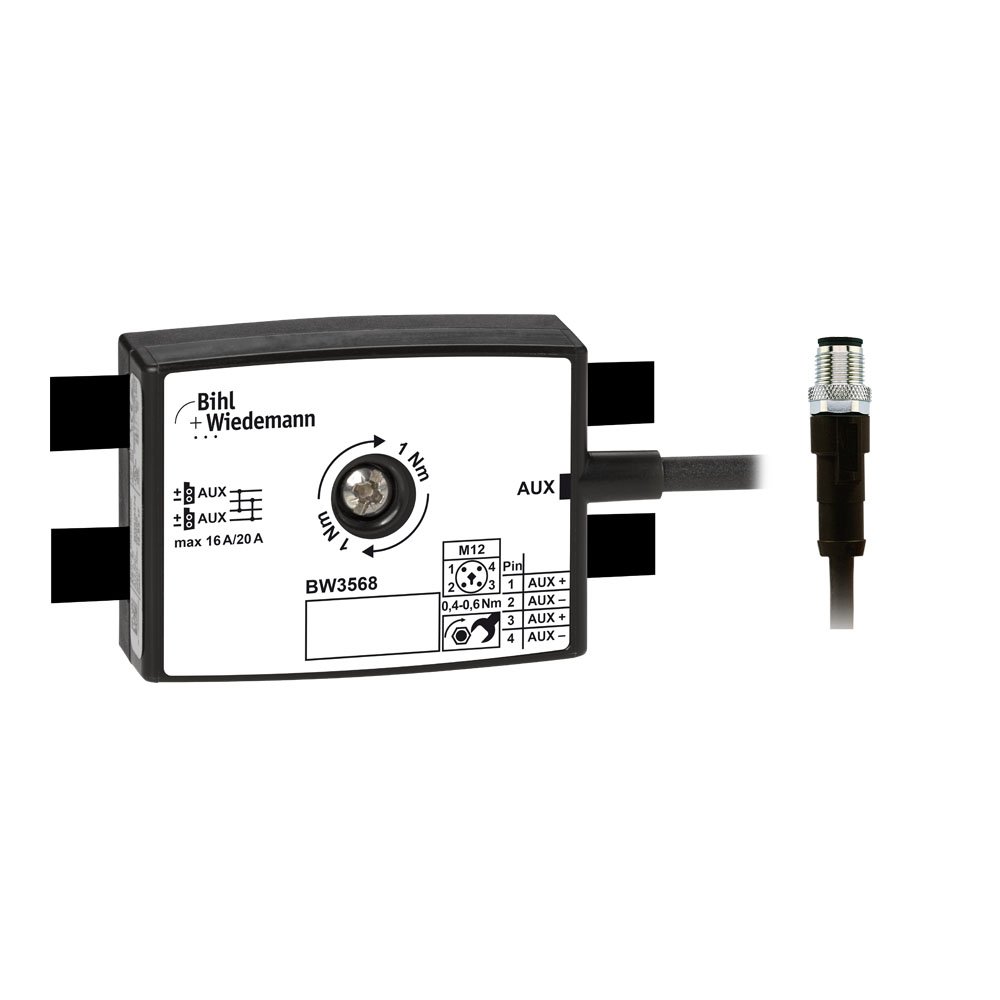

BW3568 Passive Distributor AUX to 1 x M12 power cable plug, straight, T-coded, 4 poles, depth 25 mm, IP67
Brand: Bihl+Wiedemann
Code: BW3568
Passive Distributor AUX, housing depth 25 mm, IP67, connections for 2 x AUX profile cables to 1 x M12 power cable plug, straight, T-coded, 4 poles, cable length 1 m, flat design, installation in cable duct possible (installation depth ≥ 25 mm)
| Type | Passive distributor AUX |
| Profile cable connection | 2 x AUX 24 V, 16 A/20 A |
| Connection | 1 x M12 power cable plug, straight, T-coded, 4 poles |
| Internal fuse | no |
| Round cable | 1 m |
| Flat design, installation in cable duct possible | yes, depth: 25 mm |
| Housing | depth: 25 mm |
| LED status display | no |
| Protection rating | IP67 |
