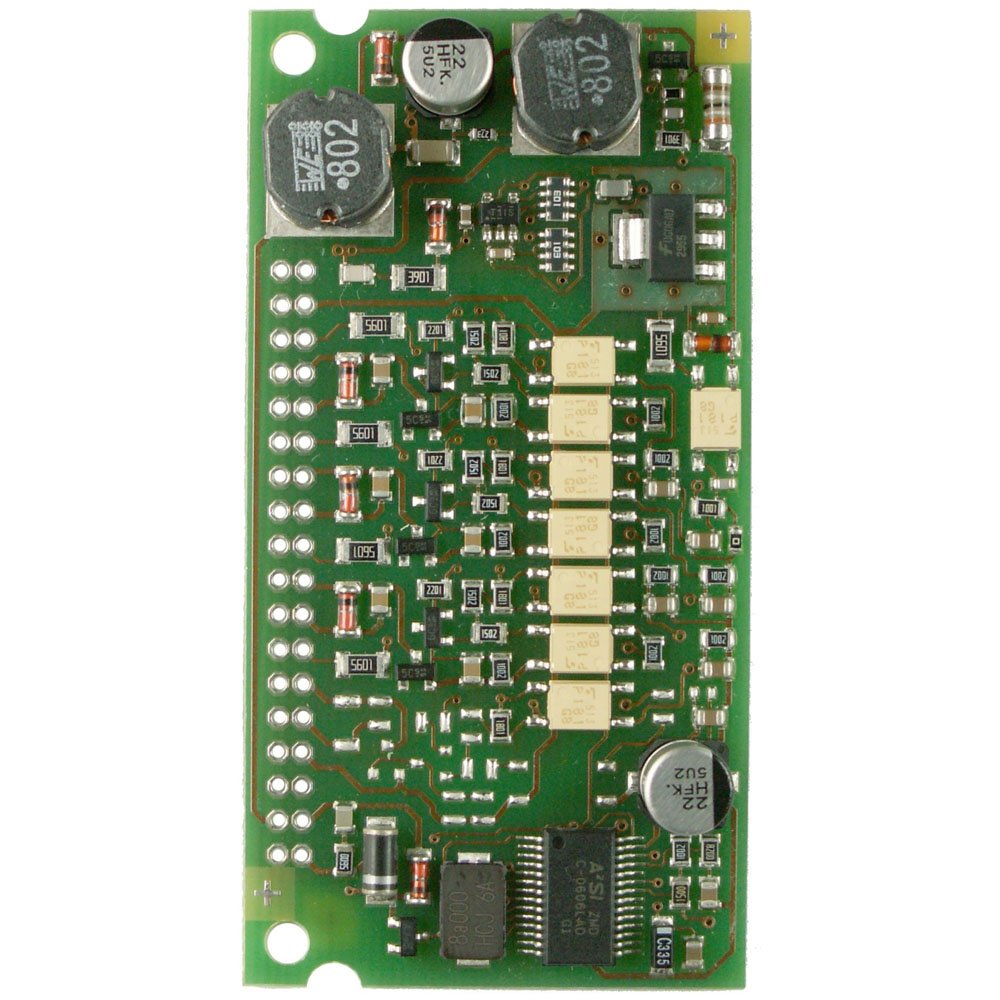

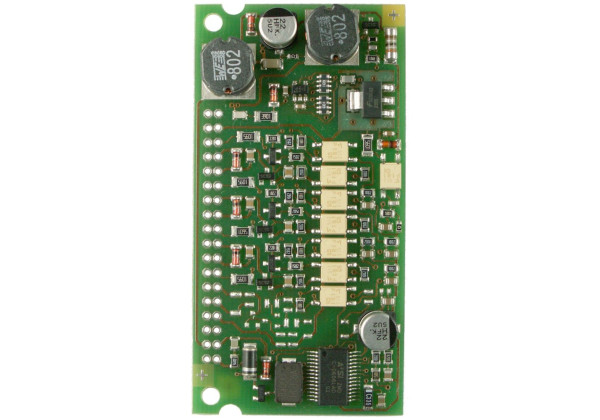

BWR1408 ASi PCB Module, 73 mm x 37,5 mm
Brand: Bihl+Wiedemann
Code: BWR1408
ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 3 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 180 mA for sensor supply, max. 100 mA per output, periphery connection via solder lugs, ASi connection via solder lugs, 1 AB address
| Circuit board dimensions | 73 mm x 37,5 mm |
| Inputs digital | 4 |
| Outputs digital | 3 x electronic |
| Input voltage (sensor supply) | out of ASi |
| Output voltage (actuator supply) | out of ASi |
| PCB connection | solder lugs |
| Coating | no |
| ASi connection | solder lugs |
| ASi address | 1 AB address |
