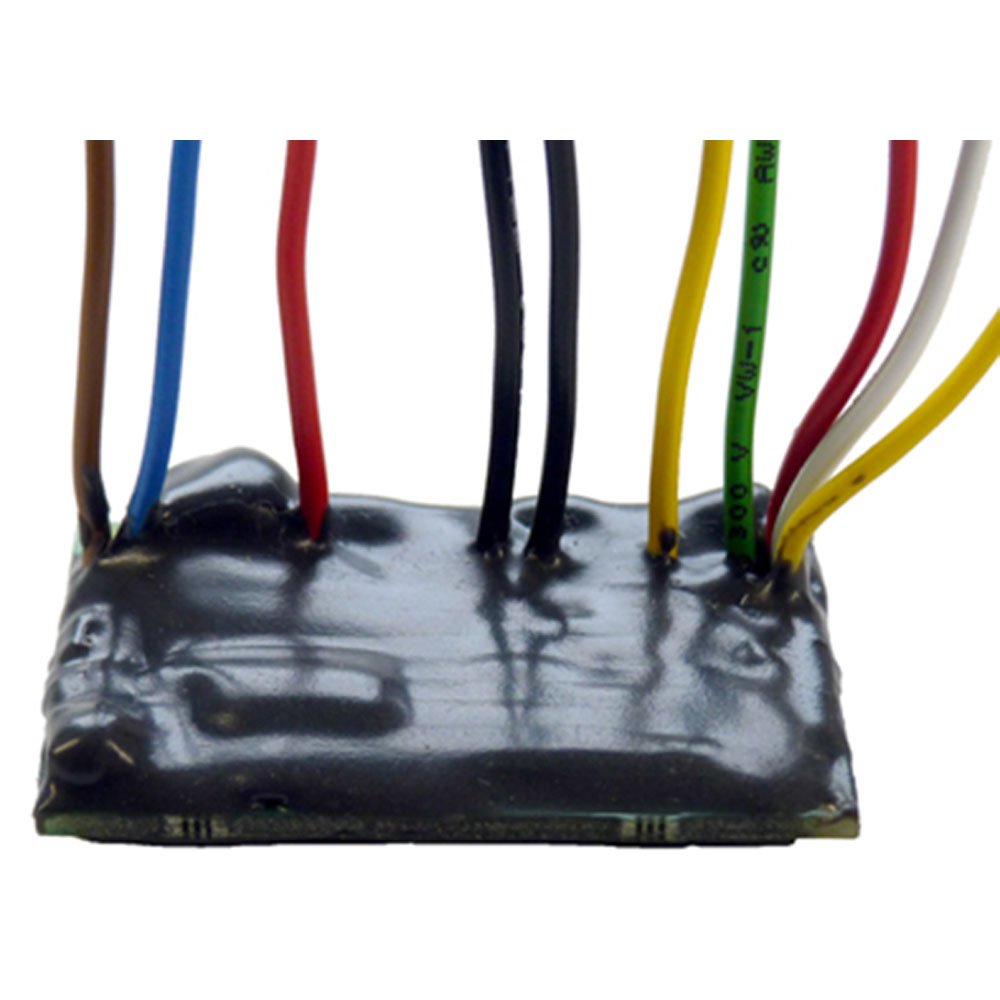

BWR2574 ASi PCB Module, 43 mm x 30 mm
Brand: Bihl+Wiedemann
Code: BWR2574
ASi PCB Module, 43 mm x 30 mm, 2 digital inputs, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 20 mA for sensor supply, periphery connection via connecting wires (100 mm), thick coated, LED, ASi connection via connecting wires (100 mm), 1 AB address
| Circuit board dimensions | 43 mm x 30 mm |
| Inputs digital | 2 |
| Outputs digital | 2 x electronic |
| Input voltage (sensor supply) | out of ASi |
| Output voltage (actuator supply) | out of ASi |
| PCB connection | connecting wires, 100 mm |
| Coating | thick coated |
| ASi connection | connecting wires, 100 mm |
| ASi address | 1 AB address |
