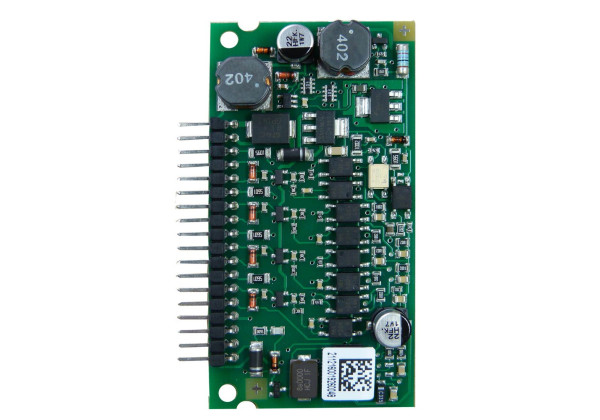

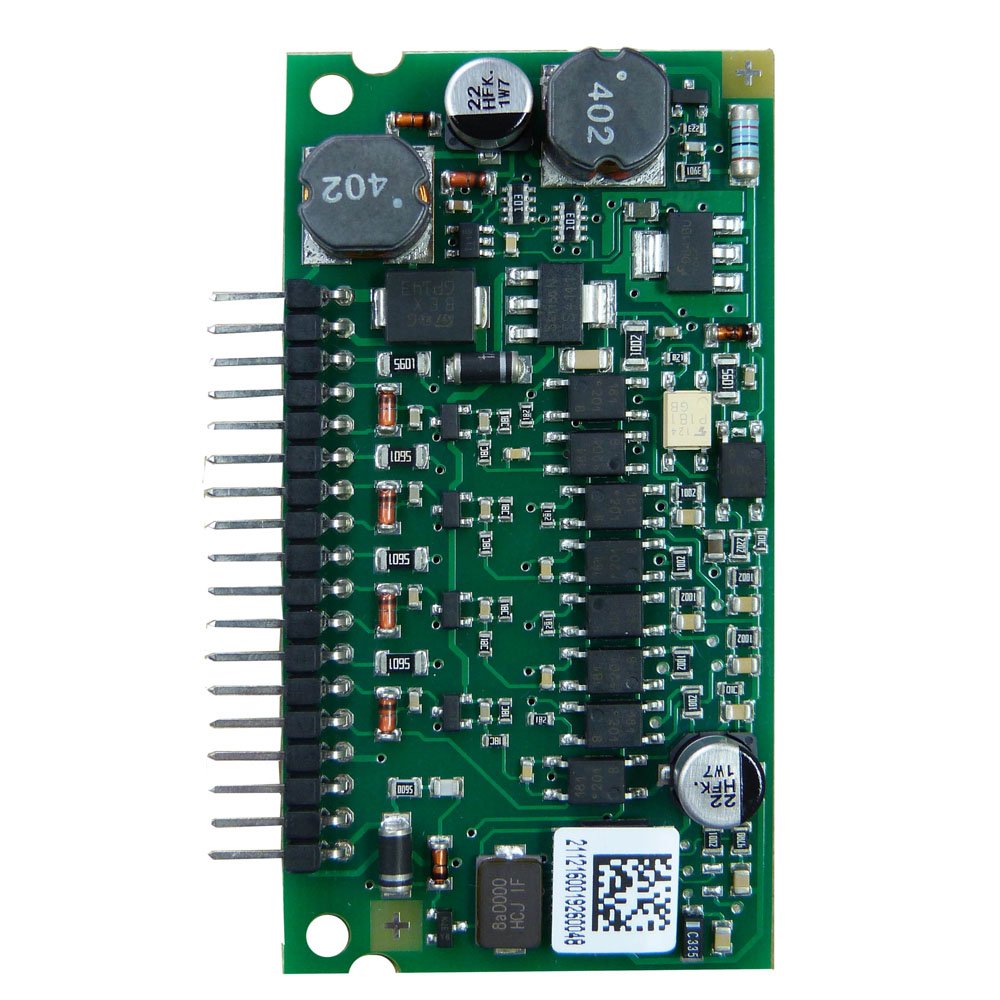

BWR2591 ASi PCB Module, 73 mm x 37,5 mm
Brand: Bihl+Wiedemann
Code: BWR2591
ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 4 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, max. 260 mA for sensor supply, max. 250 mA per output, periphery connection via wiring pins, angled, LED, ASi connection via wiring pins, angled, 1 single address
| Circuit board dimensions | 73 mm x 37,5 mm |
| Inputs digital | 4 |
| Outputs digital | 4 x electronic |
| Input voltage (sensor supply) | out of ASi |
| Output voltage (actuator supply) | out of AUX |
| PCB connection | wiring pins, angled |
| Coating | no |
| ASi connection | wiring pin, angled |
| ASi address | 1 Single address |
