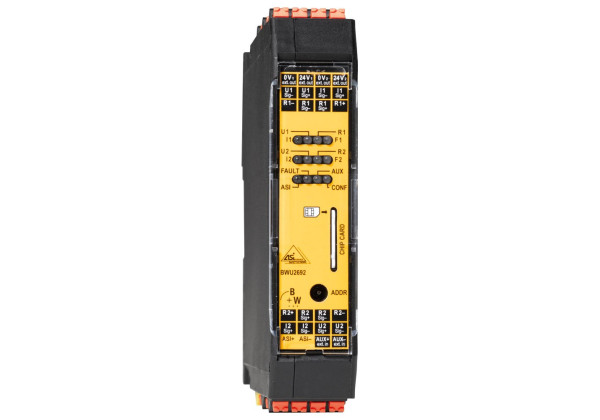

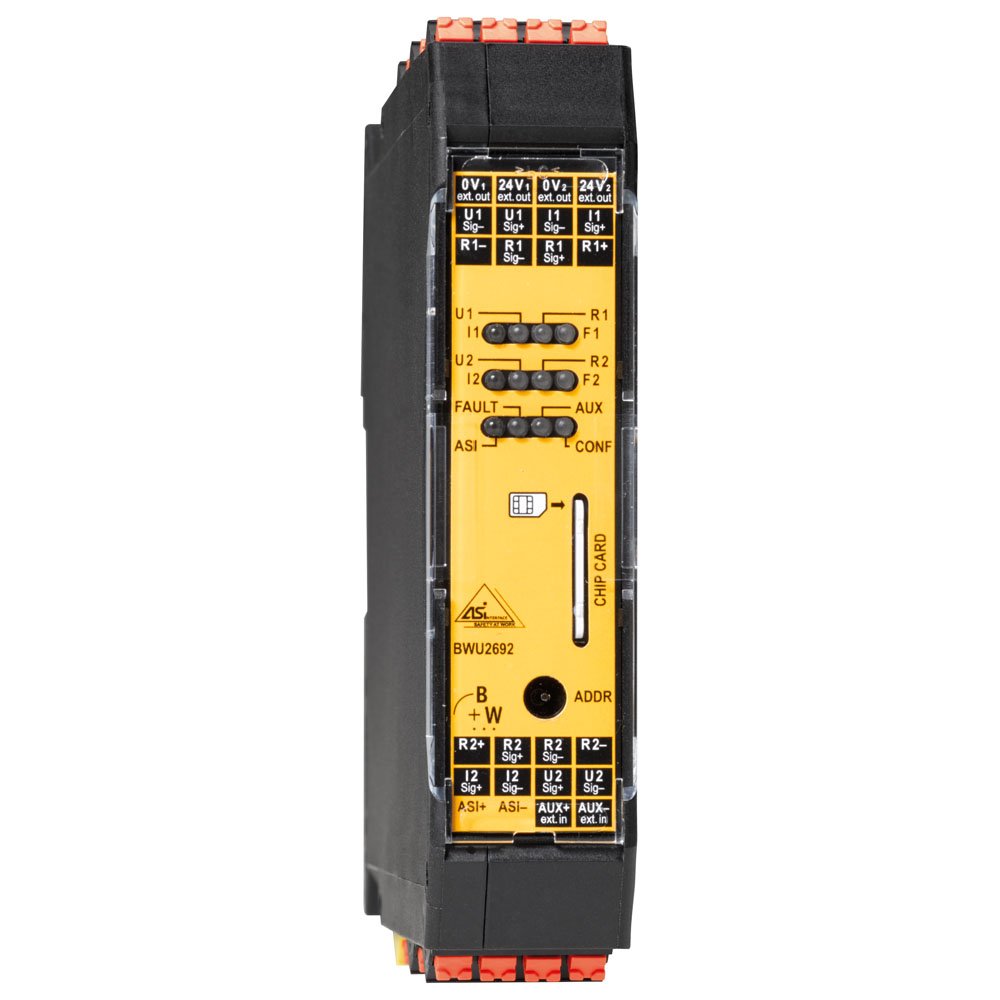

BWU2692 ASi Safety Analog Input Module, IP20, 1SI
Brand: Bihl+Wiedemann
Code: BWU2692
ASi Safety Analog Input Module in IP20, 22,5 mm x 114 mm, with 6 x COMBICON connections, 1 x 2 channels safe input (SIL 3, cat. 4) for analog values 4... 20 mA/0... 10 V/Pt100, input voltage/sensor supply out of AUX, periphery connection via clamps, without limitation of connector cable length (loop resistance 150 Ohm), ASi connection via clamps, ASi addresses depending on configuration
| Inputs Safety, SIL 3, Cat. 4 | 1 x 2 channels |
| Safety signal inputs | 4... 20 mA / 0... 10 V / Pt100 |
| Input voltage (sensor supply) | out of AUX |
| ASi address | depending on configuration |
Check out any spare parts and components from the Bihl+Wiedemann catalog!
