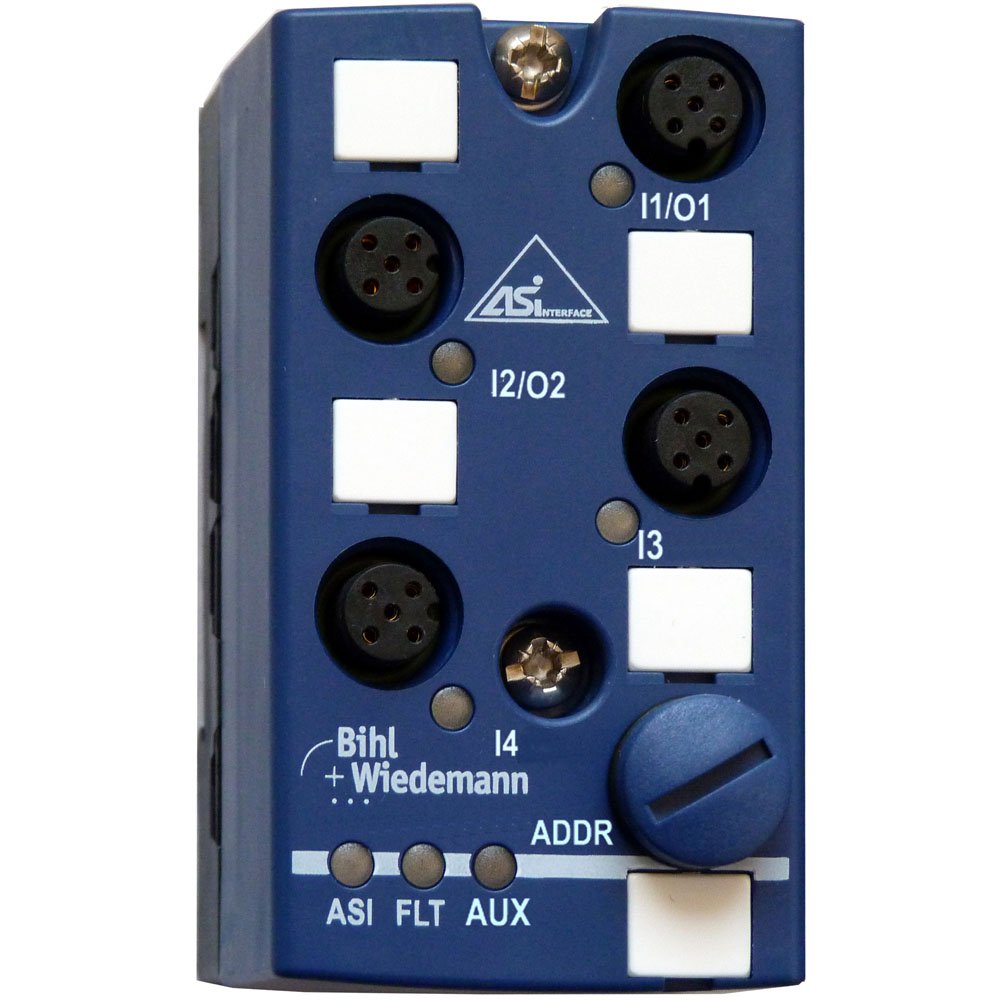

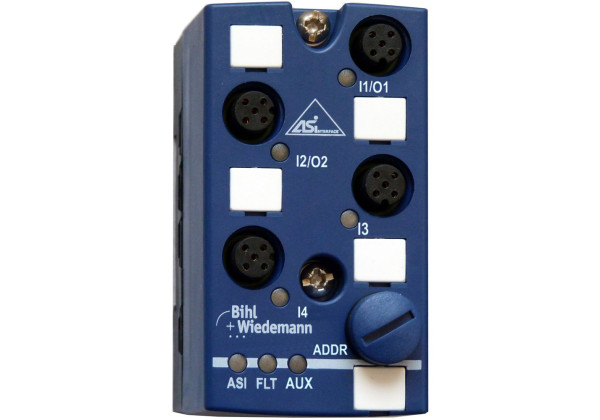

BWU2767 ASi Motor Module, IP67, M12, 4I/2O
Brand: Bihl+Wiedemann
Code: BWU2767
ASi Digital I/O Module in IP67, with 4 x M12 sockets, 4 digital inputs, 2 digital outputs, mixed wiring, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via 4 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 1 AB address
4I/2O Module suitable for 2 x MOVI-SWITCH ® 1E.
The substructure module is not included in the scope of delivery.
| Inputs digital | 4 |
| Outputs digital | 2 x electronic |
| Input voltage (sensor supply) | out of AUX |
| Output voltage (actuator supply) | out of AUX |
| Connection | 4 x M12 sockets, 5 poles |
| Round cable | no |
| ASi address | 1 AB address |
