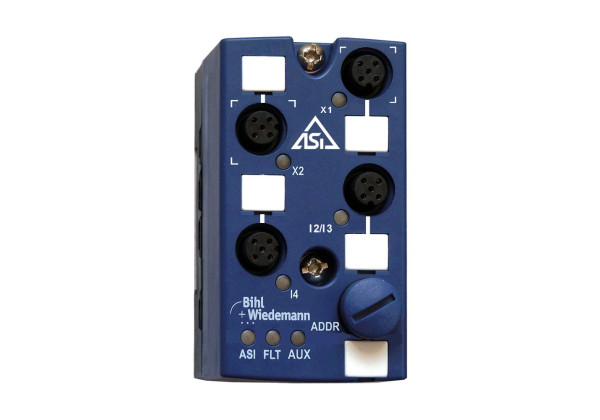

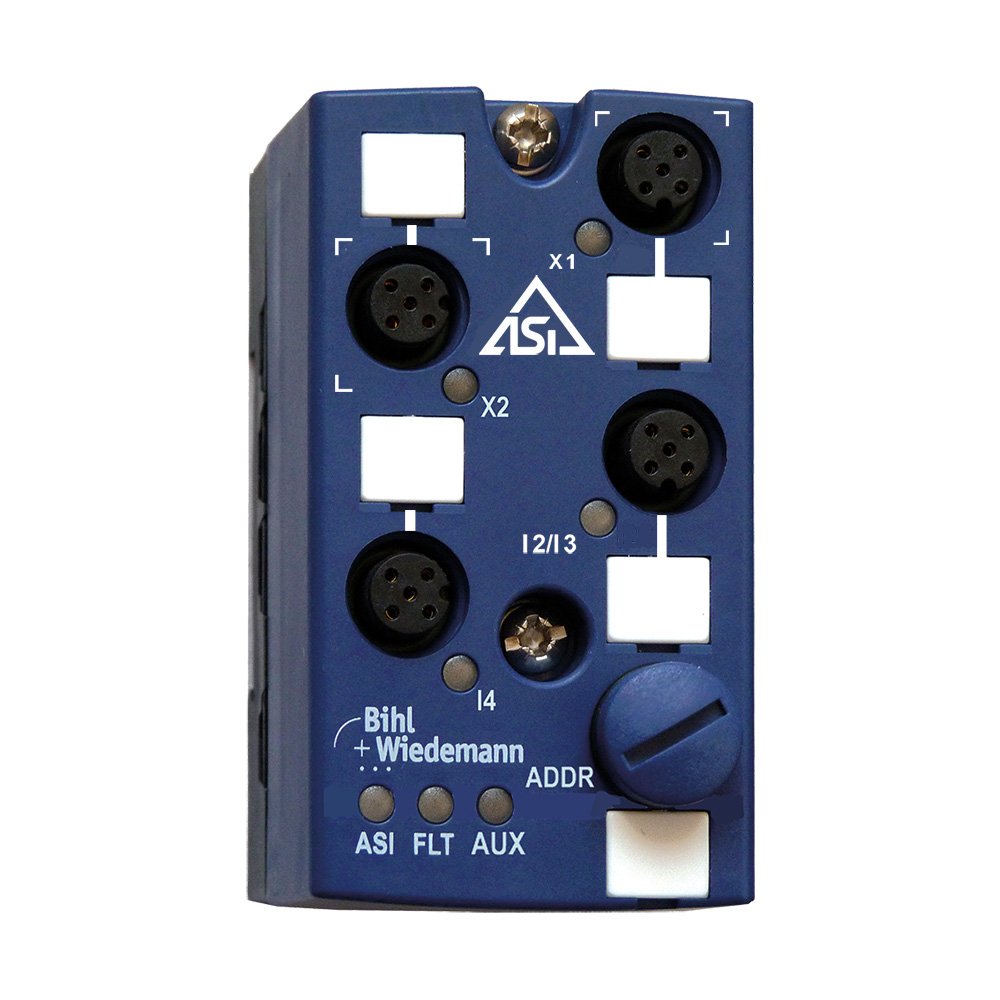

BWU3115 ASi Motor Module, IP67, M12 for Lenze Smart motor, 1M/3I
Brand: Bihl+Wiedemann
Code: BWU3115
ASi Motor Module in IP67, with 4 x M12 sockets for 1 x Lenze Smart motor, 3 digital inputs, motor control supply via AUX, input voltage/sensor supply out of AUX, periphery connection via 4 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 1 AB address
2 x M12 connections compatible with Lenze Smart Motor
2 x M12 connections for upt to 3 additional sensors
The substructure module is not included in the scope of delivery.
| Drive | Lenze Smart Motor |
| Number of Drives | 1 |
| Inputs digital | 3 |
| Input voltage (sensor supply) | out of AUX |
| Output voltage (actuator supply) | out of AUX |
| Connection | 4 x M12 sockets, 5 poles |
| Round cable | no |
| ASi address | 1 AB address |
Check out any spare parts and components from the Bihl+Wiedemann catalog!
