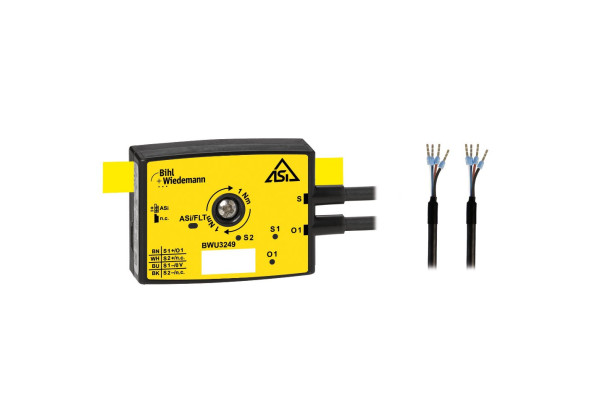

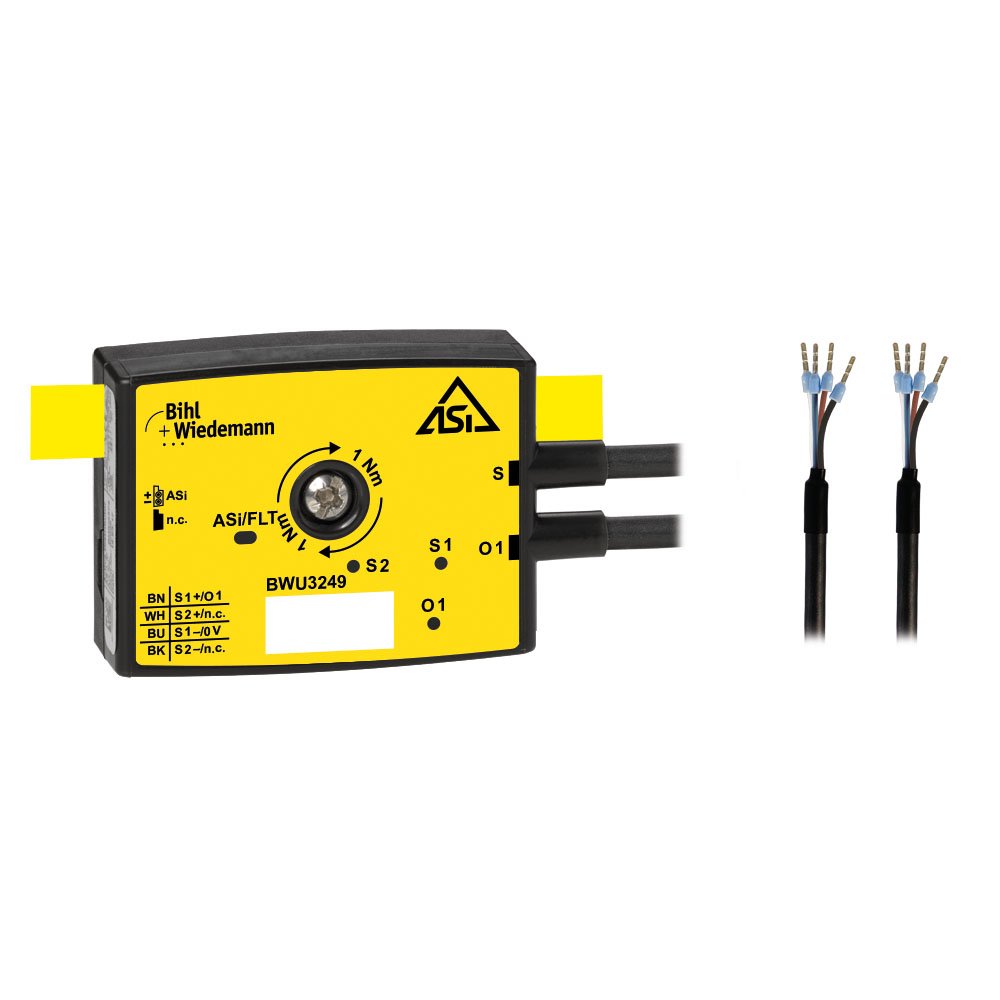

BWU3249 Active Distributor ASi Safety, IP67, 1SI/1O
Brand: Bihl+Wiedemann
Code: BWU3249
Active Distributor ASi Safety, IP67, housing depth 19 mm, 1 x 2 channels safe input (SIL 3, cat. 4) for floating contacts, 1 digital output, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, periphery connection via 2 x round cables/connecting wires, cable length 1 m, flat design, installation in cable duct possible (installation depth ≥ 19 mm), connection for 1 x ASi profile cable, ASi connection via profile cable and piercing technology, 1 single address
| Outputs digital | 1 x electronic |
| Input voltage (sensor supply) | out of ASi |
| Output voltage (actuator supply) | out of ASi |
| Connection | 2 x round cables/connecting wires |
| Round cable | 1 m |
| ASi address | 1 Single address |
Check out any spare parts and components from the Bihl+Wiedemann catalog!
Do you want to order a BWU3249 Active Distributor ASi Safety, IP67, 1SI/1O with code: BWU3249?
Leave your request on our website for immediate assistance!
