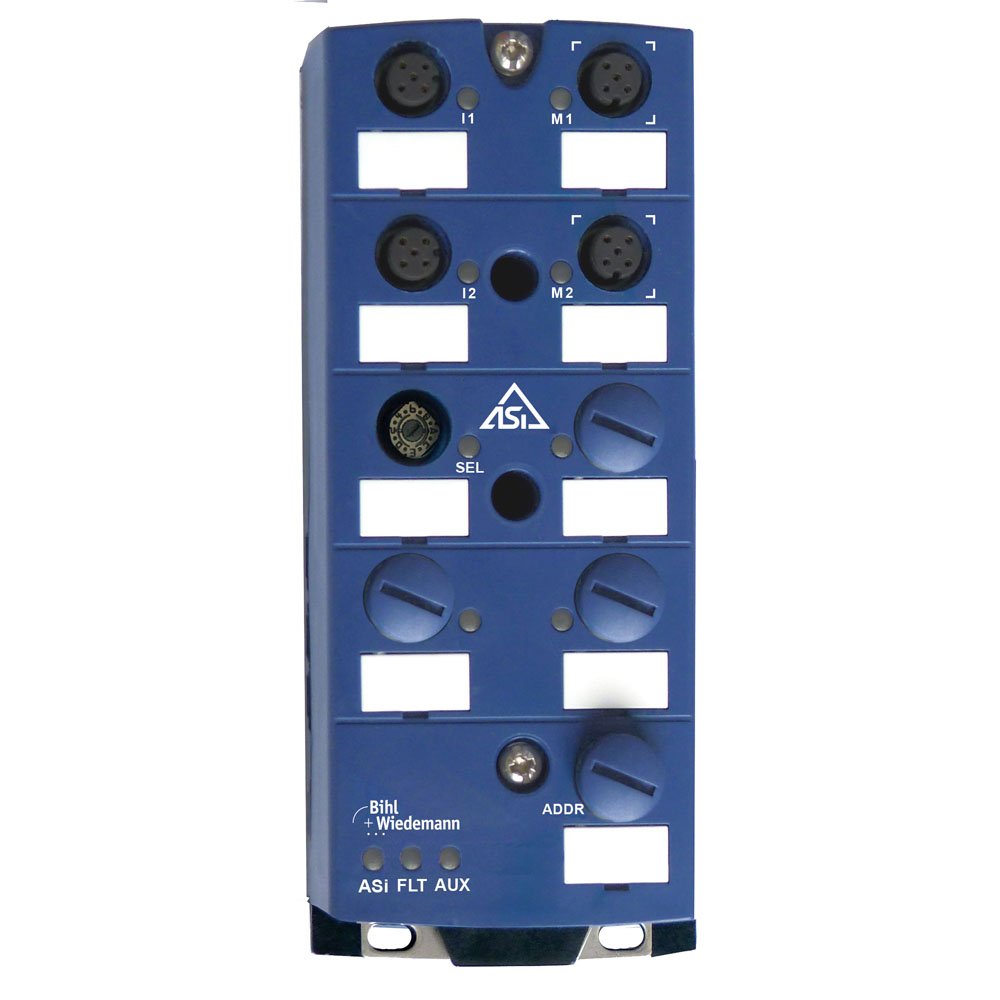

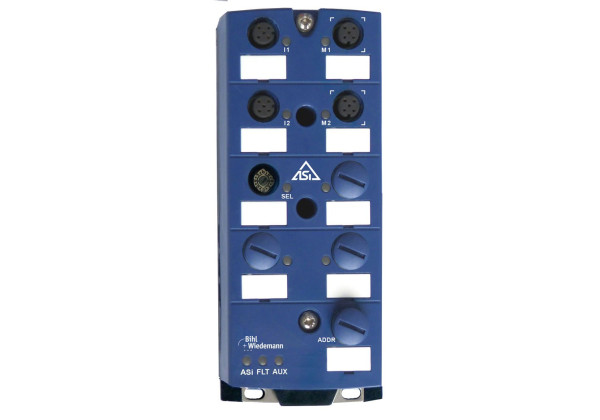

BWU3501 ASi Motor Module, IP67, M12 for 24 V motorized rollers, 2M/2I
Brand: Bihl+Wiedemann
Code: BWU3501
ASi Motor Module in IP67, with 4 x M12 sockets for 2 x 24 V motorized rollers, 2 digital inputs, motor control supply via AUX, input voltage/sensor supply out of AUX, periphery connection via 4 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 1 AB address.
The substructure module is not included in the scope of delivery.
| Drive | 24 V DC motors |
| Number of Drives | 2 |
| Inputs digital | 2 |
| Input voltage (sensor supply) | out of AUX |
| Output voltage (actuator supply) | out of AUX |
| Connection | 4 x M12 sockets, 5 poles |
| Round cable | no |
| ASi address | 1 AB address |
Check out any spare parts and components from the Bihl+Wiedemann catalog!
Do you want to order a BWU3501 ASi Motor Module, IP67, M12 for 24 V motorized rollers, 2M/2I with code: BWU3501?
Leave your request on our website for immediate assistance!
