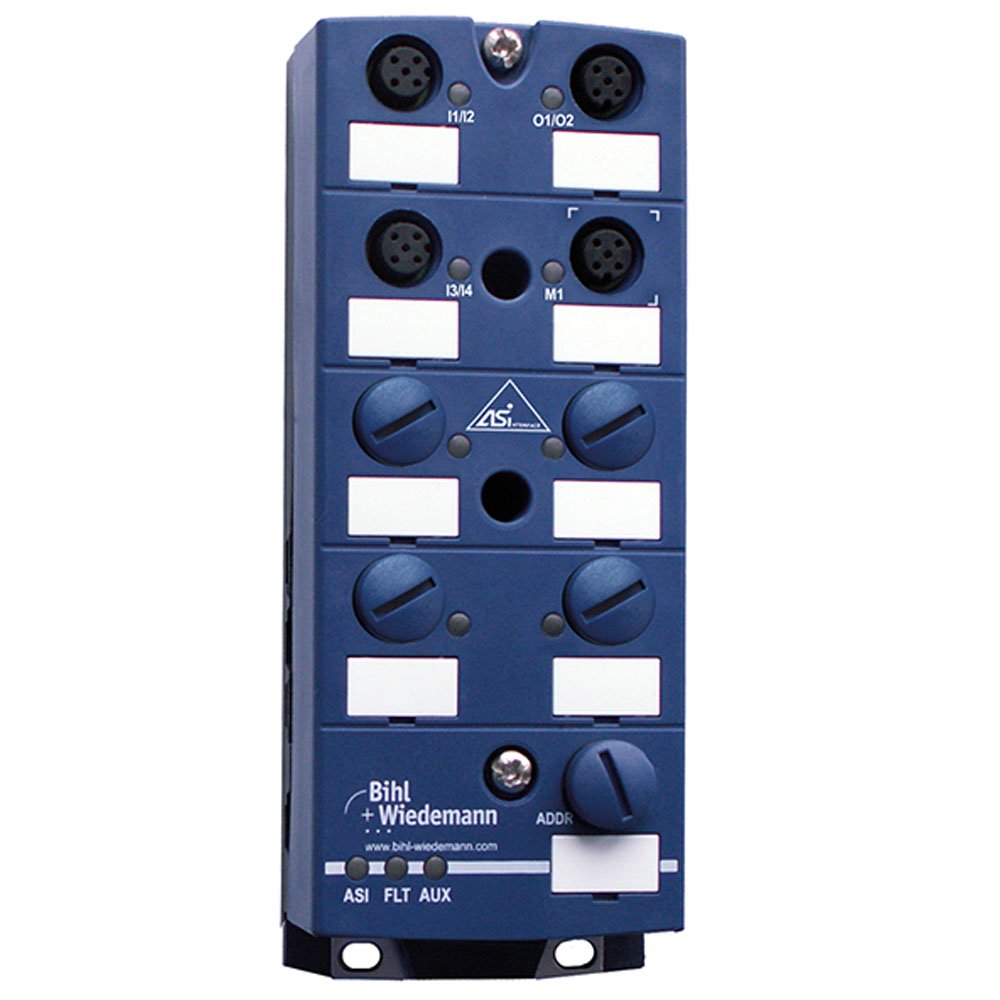

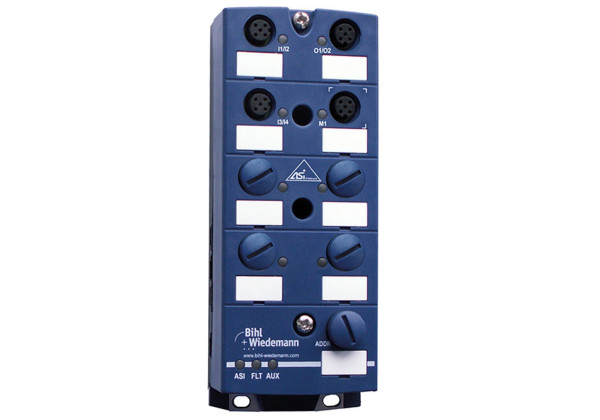

BWU3551 ASi motor module, IP67, M12 for 24 V DC motor, 4I/2O
Brand: Bihl+Wiedemann
Code: BWU3551
ASi Motor Module in IP67, with 4 x M12 sockets for 1 x 24 VDC motor, 4 digital inputs, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, periphery connection via 4 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 1 single address
The substructure module is not included in the scope of delivery
| Drive | 24 V DC motors |
| Number of Drives | 1 |
| Inputs digital | 4 |
| Outputs digital | 2 x electronic |
| Input voltage (sensor supply) | out of ASi |
| Output voltage (actuator supply) | out of AUX |
| Connection | 4 x M12 sockets, 5 poles |
| Round cable | no |
| ASi address | 1 Single address |
