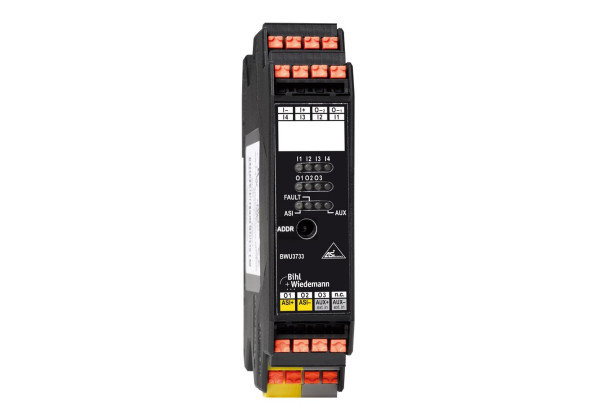

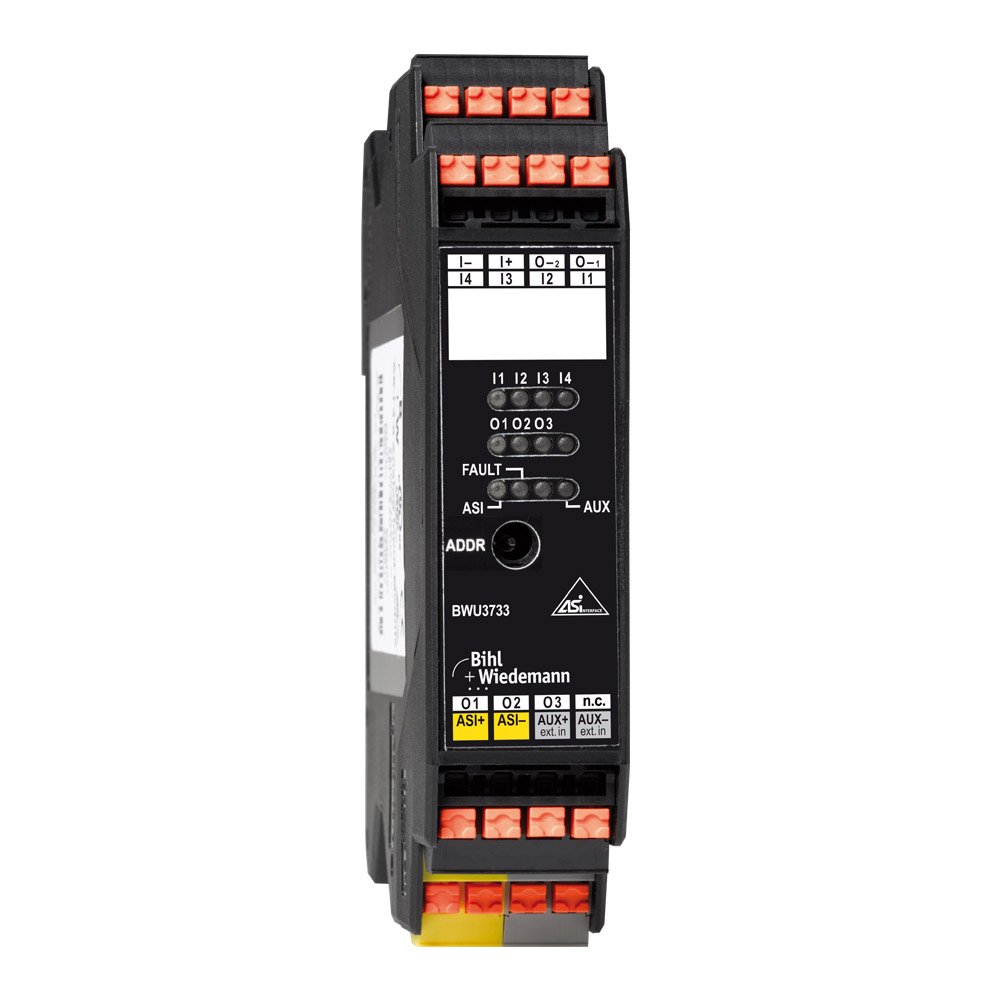

BWU3733 ASi Digital I/O Module, IP20, 4I/3O
Brand: Bihl+Wiedemann
Code: BWU3733
ASi Digital I/O Module in IP20, 22,5 mm x 92 mm, with 4 x COMBICON connections, 4 digital inputs, 3 digital outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via clamps, ASi connection via clamps, 1 AB address (S-7.A.7.0), optimal application in the main control cabinet
| Inputs digital | 4 |
| Outputs digital | 3 x electronic |
| Input voltage (sensor supply) | out of AUX |
| Output voltage (actuator supply) | out of AUX |
| Connection | push in terminals |
| ASi address | 1 AB address |
Check out any spare parts and components from the Bihl+Wiedemann catalog!
