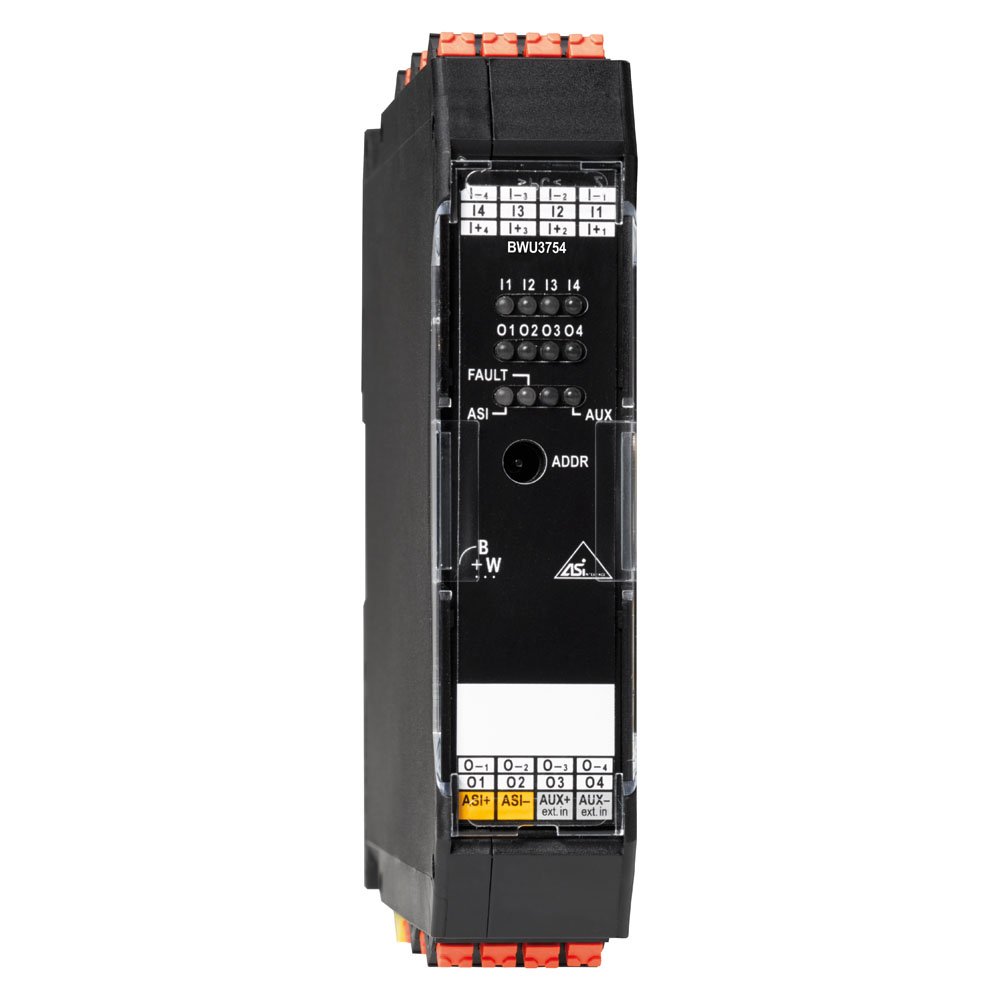

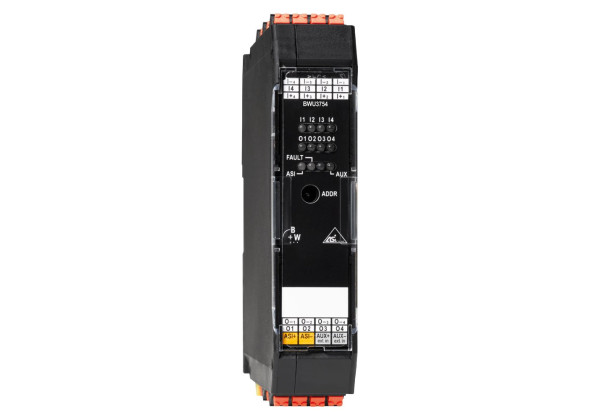

BWU3754 ASi Digital I/O Module, IP20, 4I/4O
Brand: Bihl+Wiedemann
Code: BWU3754
ASi Digital I/O Module in IP20, 22,5 mm x 114 mm, with 6 x COMBICON connections, 4 digital inputs, 4 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, periphery connection via clamps, ASi connection via clamps, 1 single address (S-7.0.F.E), ideal for use in decentralized control cabinets
| Inputs digital | 4 |
| Outputs digital | 4 x electronic |
| Input voltage (sensor supply) | out of ASi |
| Output voltage (actuator supply) | out of AUX |
| Connection | push in terminals |
| ASi address | 1 Single address |
