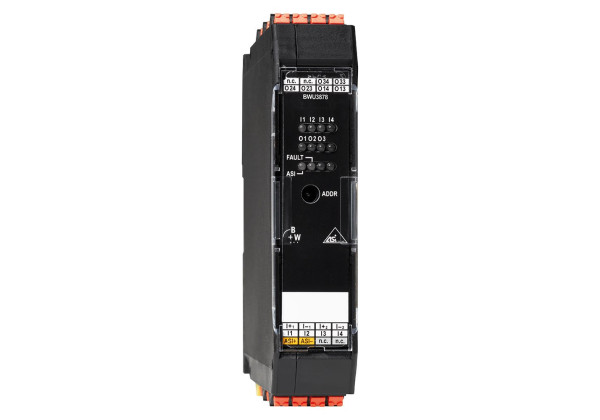

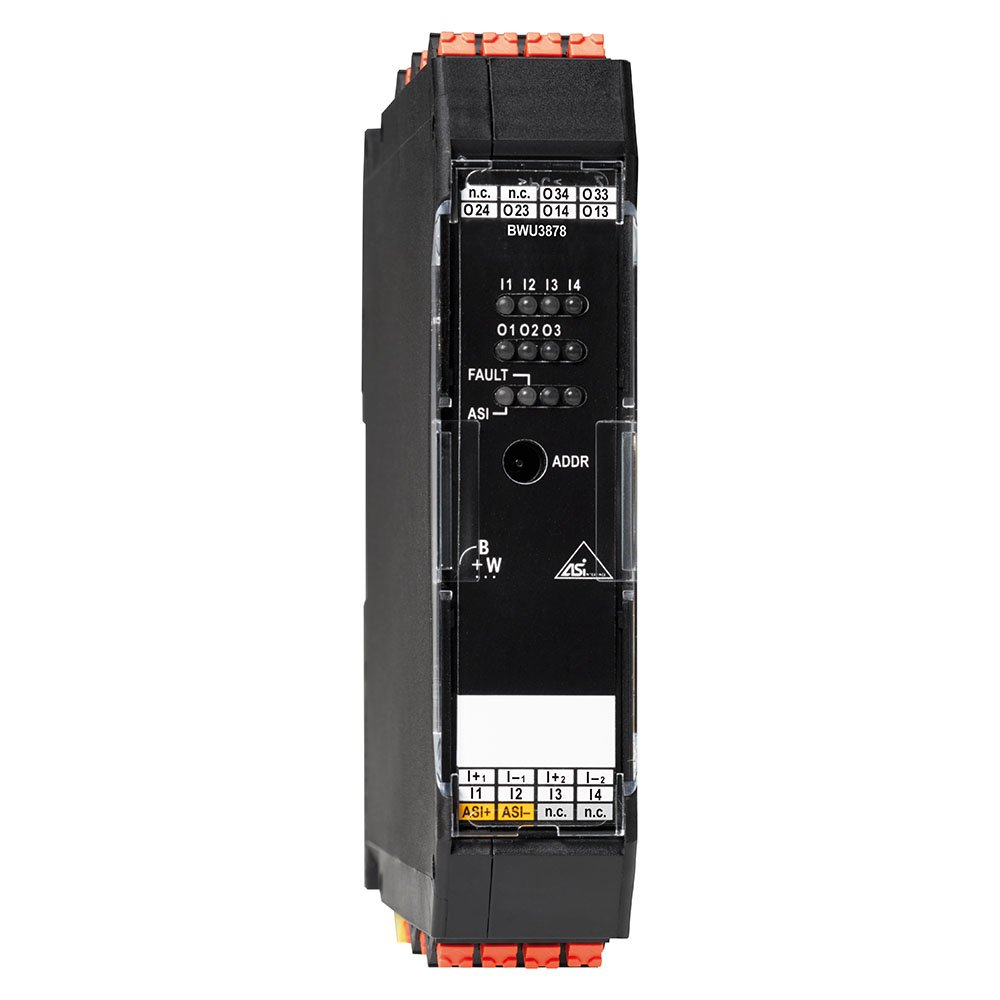

BWU3878 ASi Digital I/O Module, IP20, 4I/3RO
Brand: Bihl+Wiedemann
Code: BWU3878
ASi Digital I/O Module in IP20, 22,5 mm x 114 mm, with 6 x COMBICON connections, 4 digital inputs, 3 relay outputs, input voltage/sensor supply out of ASi, periphery connection via clamps, ASi connection via clamps, 1 AB address (S-7.A.7.0), optimal application in the main control cabinet
| Inputs digital | 4 |
| Outputs digital | 3 x relay |
| Input voltage (sensor supply) | out of ASi |
| Connection | push in terminals |
| ASi address | 1 AB address |
