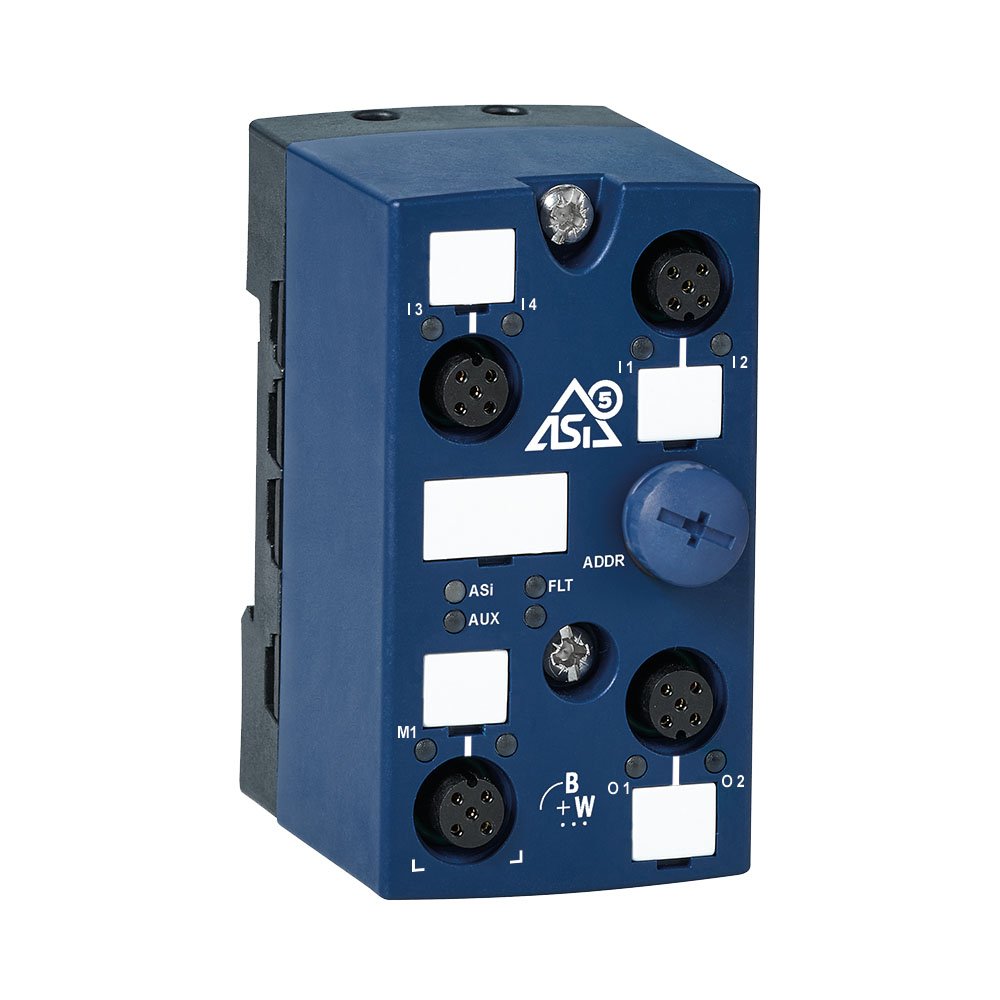

BWU4369 ASi-5 Motor Module, IP67, M12 for Rockwell PF525, 1M/4I/2O
Brand: Bihl+Wiedemann
Code: BWU4369
ASi-5 Motor Module in IP67, with 4 x M12 sockets for 1 x Rockwell PF525, 4 digital inputs, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, periphery connection via 4 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 1 ASi-5 address
The substructure module is not included in the scope of delivery.
| Drive | Rockwell PF525 |
| Number of Drives | 1 |
| Inputs digital | 4 |
| Outputs digital | 2 x electronic |
| Input voltage (sensor supply) | out of ASi |
| Output voltage (actuator supply) | out of AUX |
| Connection | 4 x M12 sockets, 5 poles |
| Round cable | no |
| ASi address | 1 ASi-5 address |
Check out any spare parts and components from the Bihl+Wiedemann catalog!
