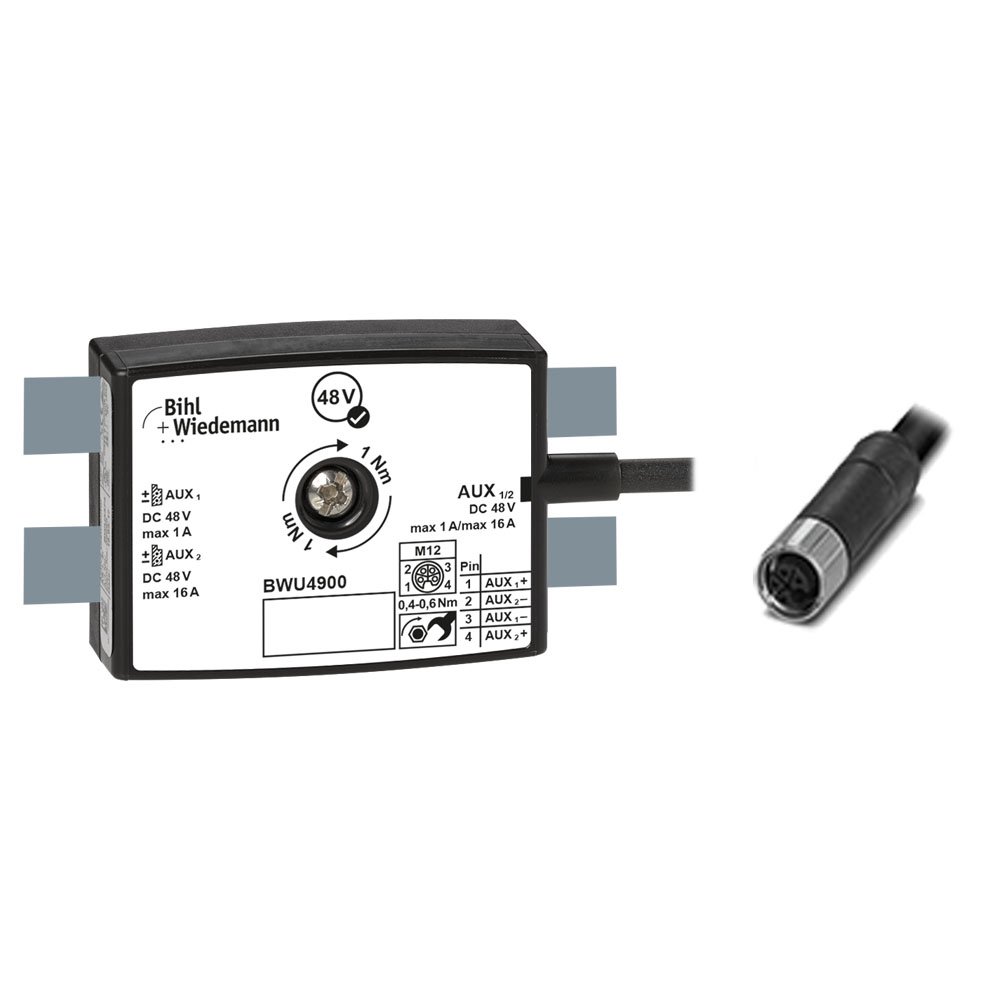

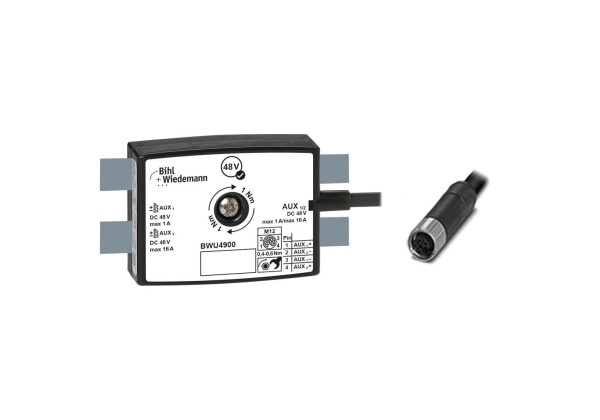

BWU4900 Passive Distributor AUX to 1 x M12 power cable sockets, straight, L-coded, 4 poles, depth 25 mm, IP67
Brand: Bihl+Wiedemann
Code: BWU4900
Passive Distributor AUX, housing depth 25 mm, IP67, connections for 2 x AUX profile cables (galvanically separated) to 1 x M12 power cable socket, straight, L-coded, 4 poles, cable length 2 m, flat design, installation in cable duct possible (installation depth ≥25 mm)
| Type | Passive distributor AUX |
| Profile cable connection | 2 x AUX 48 V (galvanically separated) |
| Connection | 1 x M12 power cable socket, straight, L-coded, 4 poles |
| Internal fuse | no |
| Round cable | 2 m |
| Flat design, installation in cable duct possible | yes, depth: 25 mm |
| Housing | depth: 25 mm |
| LED status display | no |
| Protection rating | IP67 |
