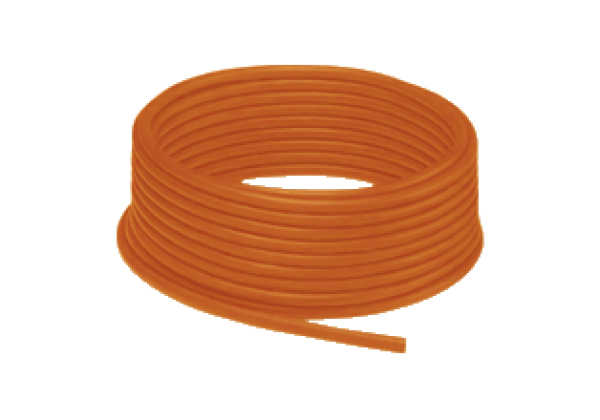

Bulk Raw Cable CBL-POC-OR-04x034-100M
Brand: Pepperl+Fuchs
Code: CBL-POC-OR-04x034-100M
Cable, POC/ETFE, 4-pin, welding-bead resistant orange, suitable for robotic applications, torsion resistant, oil resistant, molecurlarly cross-linked
Datasheet excerpt: Technical data of CBL-POC-OR-04x034-100M
| Product Description |
|---|
| Cable, POC/ETFE, 4-pin, welding-bead resistant orange, suitable for robotic applications, torsion resistant, oil resistant, molecurlarly cross-linked |
| Electrical specifications | ||
|---|---|---|
| Operating voltage | max. 300 V | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Flammability | IEC 60332-1-2 , ISO 14572 , ISO 6722 | |
| Halogen-free | IEC 60754-2 | |
| Hydrolysis resistance | ISO 6722 | |
| Oil resistance | ISO 14572 | |
| Ambient conditions | ||
| Ambient temperature | ||
| Cable, fixed | -40... 120 °C (-40... 248 °F) for 20000 h -40... 150 °C (-40... 302 °F) for 3000 h | |
| Cable, flexing | -15... 120 °C (5... 248 °F) for 20000 h -15... 150 °C (5... 302 °F) for 3000 h | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 | |
| Sheath diameter | 4.8 mm | |
| Bending radius | > 10 x cable diameter, moving > 10 x cable diameter, fixed | |
| Sheath color | orange (similar to RAL 2003) | |
| Number of cores | 4 | |
| Core cross section | 0.34 mm2 | |
| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black | |
| Core construction | 19 x 0.16 mm ∅ | |
| Length | 100 m | |
| Mass | 38.2 kg/km | |
| Cable code | Li 7Y 41X 4 x 0,34 | |
| Drag chain suitability | ||
| Torsion cycles | min. 300000 | |
| Torsional stress | ± 360 °/ 30 cm | |
| Material | ||
| PWIS free | yes | |
| Halogen-free | yes | |
| Cable | ||
| Sheathing | TPE | |
| Core insulation | ETFE | |
| Welding-bead resistance | yes | |
| Weld spatter resistance | yes | |
| Oil resistance | yes | |
| Hydrolysis resistance | yes | |
| Flammability | flame-resistant | |
| Molecularly cross-linked | yes | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060106 |
| ECLASS 12.0 | 27060106 |
| ECLASS 11.0 | 27060106 |
| ECLASS 10.0.1 | 27060106 |
| ECLASS 9.0 | 27062011 |
| ECLASS 8.0 | 27062011 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003250 |
| ETIM 8.0 | EC003250 |
| ETIM 7.0 | EC003250 |
| ETIM 6.0 | EC001578 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
