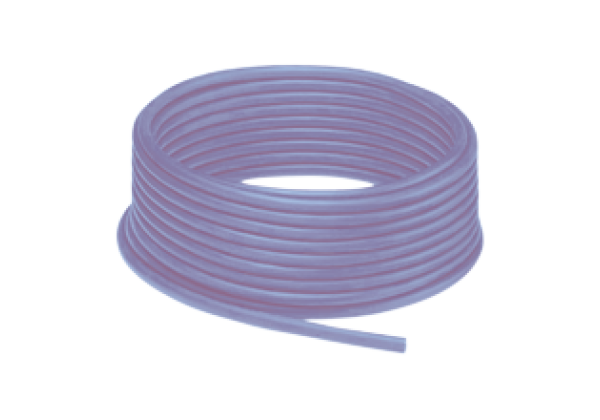

Bulk Raw Cable CBL-PUR-U/CAN-VT-04x034-100M
Brand: Pepperl+Fuchs
Code: CBL-PUR-U/CAN-VT-04x034-100M
Cable, PUR/PP, 4-core twisted quad violet, shielded, UL approved, drag chain suitable, salt water resistant
Datasheet excerpt: Technical data of CBL-PUR-U/CAN-VT-04x034-100M
| Product Description |
|---|
| Cable, PUR/PP, 4-core twisted quad violet, shielded, UL approved, drag chain suitable, salt water resistant |
| Electrical specifications | ||
|---|---|---|
| Operating voltage | max. 300 V AC | |
| Characteristic impedance | 120 Ω ±12 Ω (1 MHz) | |
| Conformity | ||
| Flammability | UL 2556 , IEC 60332-1-2 | |
| Halogen-free | IEC 60754-1 | |
| Chemical resistance | DIN EN 60811-2-1 | |
| Oil resistance | DIN EN 60811-2-1 | |
| Approvals and certificates | ||
| UL approval | CMX listed | |
| Ambient conditions | ||
| Ambient temperature | ||
| Cable, fixed | -20... 80 °C (-4... 176 °F) | |
| Cable, flexing | -20... 80 °C (-4... 176 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 | |
| Sheath diameter | 6.1 mm ± 0.15 mm | |
| Bending radius | > 8 x cable diameter, moving > 4 x cable diameter, fixed | |
| Sheath stripping force | max. 60 N / 100 mm | |
| Sheath color | violet (similar to RAL 4001) | |
| Number of cores | 4 | |
| Core cross section | 0.34 mm2 | |
| Cores color | Core 1: red Core 2: black Core 3: white Core 4: blue | |
| Core construction | 7 x 0.254 mm ∅ twisted quad | |
| Shield | tinned copper braiding, 80 % coverage | |
| Length | 100 m | |
| Cable code | Li 9Y 11Y 4 x 0.34 | |
| Drag chain suitability | ||
| Drag chain cycles | min. 3000000 | |
| Motion velocity | max. 2.5 m/s | |
| Acceleration | max. 12 m/s2 | |
| Material | ||
| Halogen-free | yes | |
| Cable | ||
| Sheathing | PUR based on polyether | |
| Core insulation | PP | |
| Salt water resistance | yes | |
| Oil resistance | yes | |
| Microbial resistance | yes | |
| Hydrolysis resistance | yes | |
| Flammability | VW-1 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060106 |
| ECLASS 12.0 | 27060106 |
| ECLASS 11.0 | 27060106 |
| ECLASS 10.0.1 | 27060106 |
| ECLASS 9.0 | 27062011 |
| ECLASS 8.0 | 27062011 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003250 |
| ETIM 8.0 | EC003250 |
| ETIM 7.0 | EC003250 |
| ETIM 6.0 | EC001578 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
