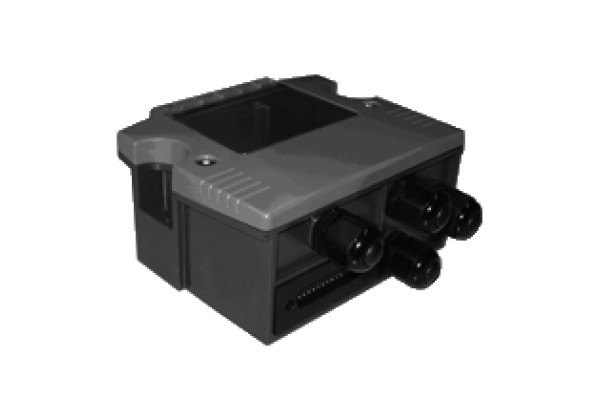

Connector box for barcode scanner CBX100
Brand: Pepperl+Fuchs
Code: CBX100
Connector box for barcode scanner, Connect up to 32 scanners to a network with ID-NetTM, Option of upgrading with memory module, Easy scanner connection by means of clamp terminals, Degree of protection IP65
Datasheet excerpt: Technical data of CBX100
| Product Description |
|---|
| Connector box for barcode scanner |
| Indicators/operating means | ||
|---|---|---|
| Display elements | 5 LEDs (POWER, TRIGGER, IN 2, OUT 1, OUT 2) | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Current consumption | max. 2.5 A | |
| Power consumption | max. 3 W | |
| Compliance with standards and directives | ||
| Directive conformity | 89/336 EWG | |
| Standard conformity | ||
| Product standard | EN 60947-5-2:2007 IEC 60947-5-2:2007 | |
| Noise immunity | EN 61000-6-2 | |
| Degree of protection | EN 60529 | |
| Ambient conditions | ||
| Ambient temperature | -35... 50 °C (-31... 122 °F) Mount, connect, and configure only between 0°... 50° | |
| Storage temperature | -20... 70 °C (-4... 158 °F) | |
| Relative humidity | 90 % , noncondensing | |
| Shock resistance | EN 60068-2-27 30G 11 ms ; 3 impacts on each axis | |
| Vibration resistance | EN 60068-2-6 1.5 mm 10... 55 Hz ; 2 hours on each axis | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | 25-pin Sub-D socket for Barcode scanner , M16 cable gland for system connection (4x) | |
| Material | ||
| Housing | PC (Polycarbonate) | |
| Mass | 380 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280192 |
| ECLASS 12.0 | 27280192 |
| ECLASS 11.0 | 27280192 |
| ECLASS 10.0.1 | 27280192 |
| ECLASS 9.0 | 27280192 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
