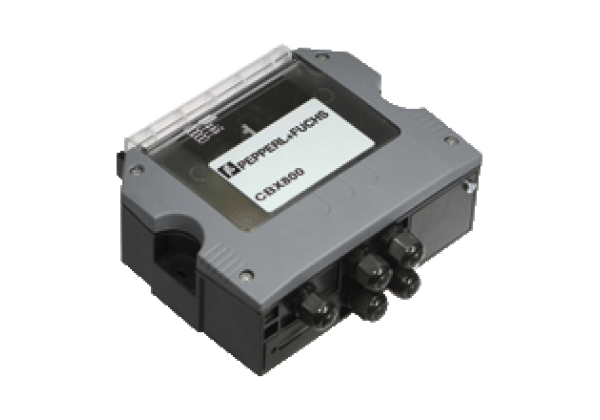

Connector box CBX800
Brand: Pepperl+Fuchs
Code: CBX800
Connection module for RS-232 and RS-485 enabled devices, Easy scanner connection by means of clamp terminals, Degree of protection IP65, Option of upgrading with Profibus, Ethernet and DeviceNet module
Datasheet excerpt: Technical data of CBX800
| Product Description |
|---|
| Connection module for RS-232 and RS-485 enabled devices |
| Indicators/operating means | ||
|---|---|---|
| Display elements | 8 LEDs (POWER, ERROR, TRIGGER, IN 2, OUT 1, OUT 2, READY, HOST) | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC PELV | |
| Current consumption | max. 2.5 A | |
| Power consumption | max. 3 W | |
| Interface | ||
| Interface type | Modular upgrade option (e.g. PROFIBUS, Ethernet, DeviceNet) | |
| Compliance with standards and directives | ||
| Directive conformity | 89/336 EWG | |
| Standard conformity | ||
| Noise immunity | EN 61000-6-2 | |
| Degree of protection | EN 60529 | |
| Shock and impact resistance | EN 60068-2-27 | |
| Vibration resistance | EN 60068-2-6 | |
| Ambient conditions | ||
| Ambient temperature | 0... 50 °C (32... 122 °F) | |
| Storage temperature | -20... 70 °C (-4... 158 °F) | |
| Relative humidity | 90 % , noncondensing | |
| Shock resistance | 30G ; 11 ms ; 3 impacts on each axis | |
| Vibration resistance | 1.5 mm ; 10... 55 Hz ; 2 hours on each axis | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | 25-pin Sub-D socket for Barcode scanner , M16 cable gland for system connection (5x) | |
| Material | ||
| Housing | PC (Polycarbonate) | |
| Mass | 780 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280192 |
| ECLASS 12.0 | 27280192 |
| ECLASS 11.0 | 27280192 |
| ECLASS 10.0.1 | 27280192 |
| ECLASS 9.0 | 27280192 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
