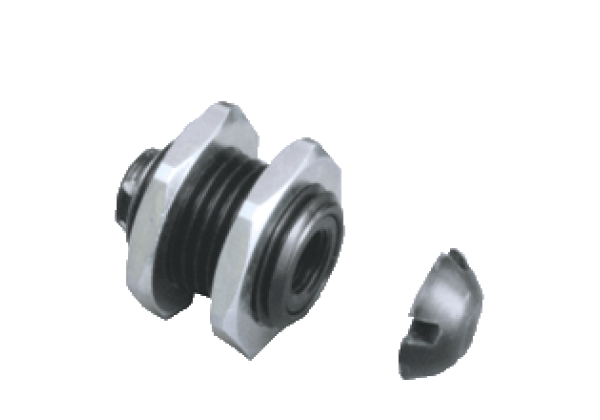

Mounting aid CM-18
Brand: Pepperl+Fuchs
Code: CM-18
Cushioned mounting bracket
Datasheet excerpt: Technical data of CM-18
| Product Description |
|---|
| Cushioned mounting bracket |
| General specifications | ||
|---|---|---|
| Inside diameter | 18 mm | |
| Mechanical specifications | ||
| Material | Sleeves: anodized aluminum Jam nuts: nickel-plated metal End cap: fiberglass reinforced nylon | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
