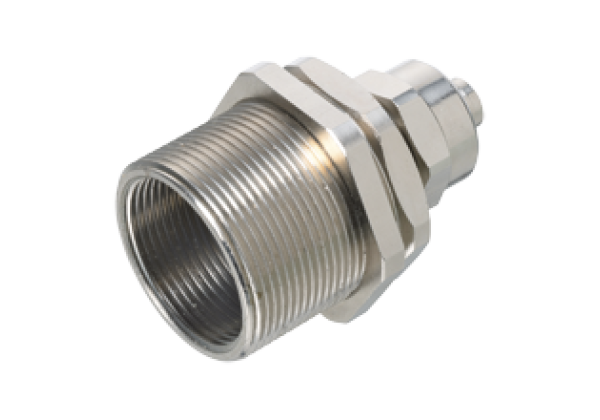

Sensor adapter CP-ADP-SLT-5/16-M30 5pcs
Brand: Pepperl+Fuchs
Code: CP-ADP-SLT-5/16-M30 5pcs
Sensor adapter for M30 sensors and 5/6" flexible coated conduit
Datasheet excerpt: Technical data of CP-ADP-SLT-5/16-M30 5pcs
| Product Description |
|---|
| Sensor adapter for M30 sensors and 5/6" flexible coated conduit |
| Mechanical specifications | ||
|---|---|---|
| External thread | ||
| Thread type | metric | |
| Thread size | M35 x 1.5 | |
| Internal thread | ||
| Thread type | metric | |
| Thread size | M30 x 1.5 | |
| Degree of protection | IP65 | |
| Material | ||
| Screwed connection | brass, nickel-plated | |
| Slotted nut | brass | |
| Clamping ring | PVC | |
| Mass | 133 g | |
| General information | ||
| Scope of delivery | 5 item(s) | |
| Supplementary information | observe mounting instructions | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
