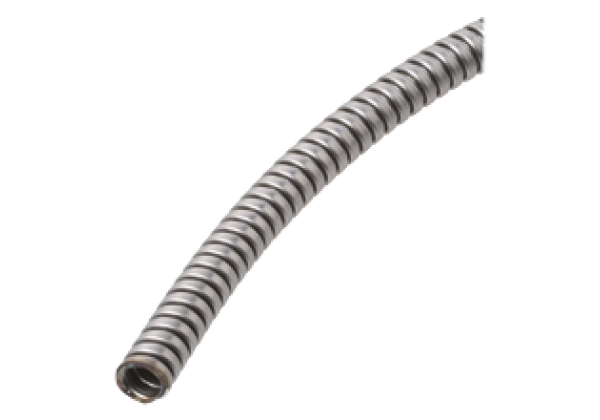

Flexible metal conduit CP-CDT-MS-1/4-10M
Brand: Pepperl+Fuchs
Code: CP-CDT-MS-1/4-10M
1/4" flexible metal conduit 10 m
Datasheet excerpt: Technical data of CP-CDT-MS-1/4-10M
| Product Description |
|---|
| 1/4" flexible metal conduit 10 m |
| Ambient conditions | ||
|---|---|---|
| Ambient temperature | - 100... 600 °C (212... 1112 °F) | |
| Mechanical specifications | ||
| Length | 10 m | |
| Bending radius | static 40 mm dynamic 50 mm | |
| Degree of protection | IP40 | |
| Mech. capacity | ||
| Impact resistance | Class 4, heavy (6 J) , according to EN-IEC 61386 | |
| Pressure resistance | Class 5, very heavy (4000 N) , according to EN-IEC 61386 | |
| Tensile strength | Class 4, heavy (1000 N) , according to EN-IEC 61386 | |
| Material | stainless steel 1.4301 / AISI 304 | |
| Mass | 1190 g | |
| General information | ||
| Supplementary information | observe mounting instructions | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27279090 |
| ECLASS 12.0 | 27279090 |
| ECLASS 11.0 | 27279090 |
| ECLASS 10.0.1 | 27279090 |
| ECLASS 9.0 | 27279090 |
| ECLASS 8.0 | 27279090 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31251501 |
