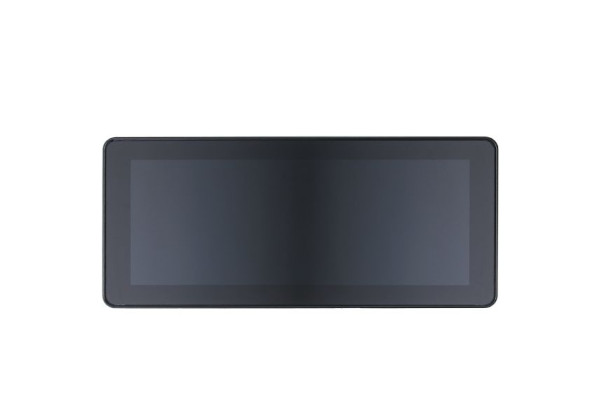

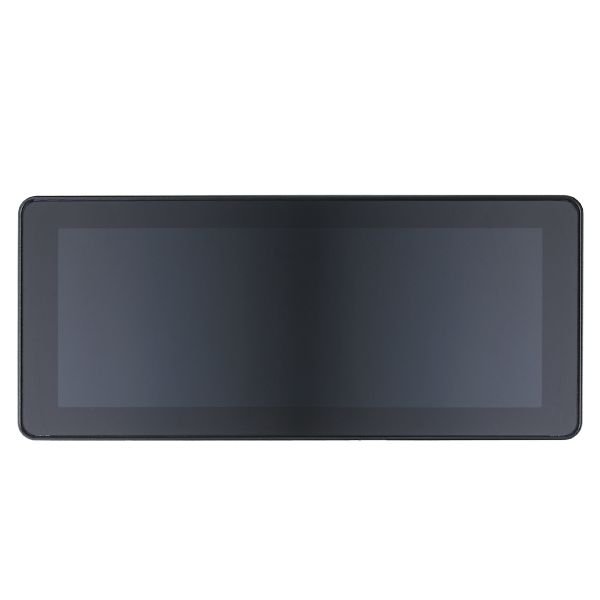

CR1203 Programmable graphic display for controlling mobile machines ecomatDisplay/12"/8:3/Touch
Brand: IFM Electronic
Code: CR1203
- Powerful, robust HMI with modern 64-bit architecture and touch screen
- High-performance USB interface for data logging and support of analogue cameras and Ethernet cameras
- High-performance CAN and Ethernet interfaces for various communication tasks
- Freely programmable to IEC 61131-3 with CODESYS 3.5
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|---|
| Nominal voltage DC [V] | 12 / 24 |
| Current consumption [mA] | < 1208; (24 V DC; with switched outputs: < 5000 mA) |
| Power consumption [W] | 29 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 2 |
|---|
Inputs
| Number of digital inputs | 2 |
|---|---|
| Number of video inputs | 4; (analogue) |
| Video input | PAL, NTSC |
| Audio input | Stereo Line-In |
Outputs
| Number of digital outputs | 2 |
|---|---|
| Max. current load per output [mA] | 2500 |
| Audio output | Stereo Line-Out; Headphones Out |
Software / programming
| Parameter setting options | CODESYS 3.5 |
|---|---|
| PLC function to IEC 61131-3 | yes |
| Operating system | Embedded Linux 4.14 |
Interfaces
| Communication interface | Ethernet; CAN; USB |
|---|---|
| Number of CAN interfaces | 4 |
| Number of Ethernet interfaces | 2 |
| Number of USB interfaces | 2 |
| Number of video interfaces (CVBS) | 4 |
| Transmission rate | 20 kBit/s... 1 MBit/s |
|---|---|
| Protocol | CANopen; SAE J1939; free protocol |
| Profile | CiA DS 301 Version 4; CiA DS 401 Version 1.4 |
| Interface | CAN Interface 2.0 A/B ISO 11898 |
| Transmission standard | 10Base-T; 100Base-TX | |
|---|---|---|
| Transmission rate | 100 MBit/s | |
| Protocol | TCP/IP; UDP; Modbus TCP; OPC UA; EtherNet/IP | |
| Note on interfaces |
|
| Transmission rate | < 480 MBit/s |
|---|---|
| Version | 2.0 |
Operating conditions
| Ambient temperature [°C] | -30...65 | ||
|---|---|---|---|
| Note on ambient temperature |
| ||
| Storage temperature [°C] | -35...85 | ||
| Max. relative air humidity [%] | 90; (non condensing) | ||
| Max. height above sea level [m] | 3000 | ||
| Protection | IP 65; IP 67; (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67) | ||
| Pollution degree | 2 |
Tests / approvals
| EMC |
| ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Continuous shock resistance |
| ||||||||||||||||||||||
| Fast temperature change |
| ||||||||||||||||||||||
| Vibration resistance |
| ||||||||||||||||||||||
| Salt spray test |
| ||||||||||||||||||||||
| MTTF [years] | 37 |
Mechanical data
| Weight [g] | 2263.5 | ||||||
|---|---|---|---|---|---|---|---|
| Type of mounting | panel / surface | ||||||
| Dimensions [mm] | 339.1 x 160.5 x 47.7 | ||||||
| Materials | diecast aluminium powder-coated | ||||||
| Information on service life |
|
Displays / operating elements
| Display |
| ||
|---|---|---|---|
| Display resolution | 1280 x 480 | ||
| Display type | colour display with touch function | ||
| Display size | 12.3" | ||
| Aspect ratio | 8:3 | ||
| Display background illumination | LED | ||
| Colour depth | 24 Bit | ||
| Brightness [cd/m²] | < 1000; (adjustable: 0...100 %; In steps of: 1 %) | ||
| Contrast ratio | 1000:1 | ||
| Touchscreen version | PCAP |
Hardware
| Processor | ARM Quad Core 64 Bit 1,2 GHz |
|---|---|
| Working memory | 1 GByte RAM |
| Mass storage | 8 GByte Flash |
Data memories
| Real-time clock | yes; UTC, battery buffered |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR1203-00 — 18.11.2019 —
