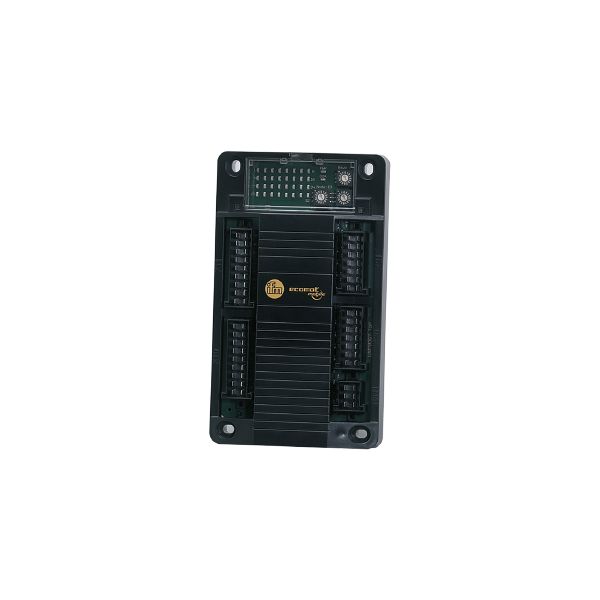

CR2016 I/O module for mobile machines R360/CabinetModule/32I/0
Brand: IFM Electronic
Code: CR2016
- Decentralised connection of sensors and actuators
- Use as a controller for cockpit or operating panels of mobile machines
- With many multifunctional configurable inputs and outputs
- High-performance CAN interface for various communication tasks
Electrical data
| Operating voltage [V] | 10...32 DC |
|---|
Inputs / outputs
| Total number of inputs and outputs | 32 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 16; Number of analogue inputs: 4; Number of frequency inputs: 4; Number of digital outputs: 16 |
Inputs
| Number of frequency inputs | 4 |
|---|---|
| Number of digital inputs | 16 |
| Number of analogue inputs | 4 |
| Analogue input (current) [mA] | 0...20 |
| Analogue input (voltage) [V] | 0...32 |
Outputs
| Number of digital outputs | 16 |
|---|---|
| Number of PWM outputs | 4 |
Software / programming
| Parameter setting options | input/output functions |
|---|
Interfaces
| Number of CAN interfaces | 1 |
|---|
Tests / approvals
| MTTF [years] | 102 |
|---|
Mechanical data
| Weight [g] | 499.3 |
|---|---|
| Dimensions [mm] | 181 x 105 x 30 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| AMP Crimp connector: |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR2016-01 — 13.04.2023 —
