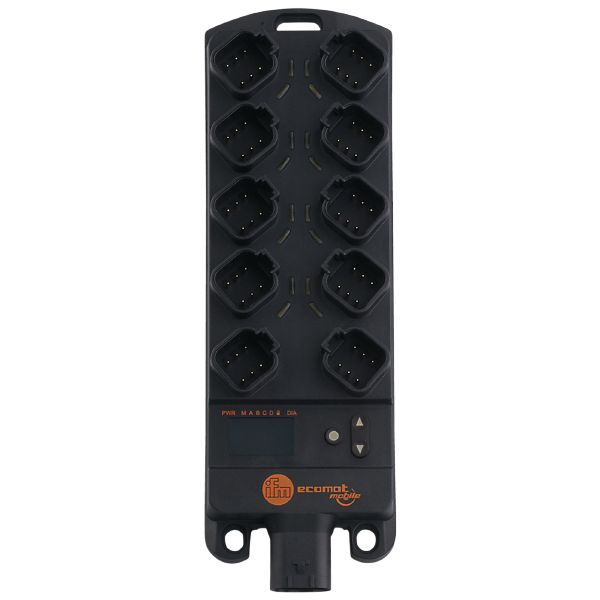

CR2050 I/O module for mobile machines ioControl/In 16/DT6

Code: CR2050

Decentralised connection of sensors and actuators
With many multifunctional configurable input channels
High-performance CAN interface for various communication tasks
Programmable to IEC 61131-3 with CODESYS
High protection rating for the requirements of mobile machines

Electrical data

Operating voltage [V]	8...32 DC
Reverse polarity protection	yes

Inputs / outputs

Total number of inputs and outputs	16
Number of inputs and outputs	Number of digital inputs: 16; Number of analogue inputs: 8; Number of frequency inputs: 4; Number of resistor inputs: 4

Inputs

Total number of inputs	16
Number of frequency inputs	4
Number of resistor inputs	4
Number of digital inputs	16
Number of analogue inputs	8
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	0...32

Outputs

Short-circuit protection	yes

Software / programming

PLC function to IEC 61131-3	yes

Interfaces

Number of CAN interfaces	2

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Protection	IP 65; IP 67

Tests / approvals

EMC

DIN EN 61000-6-2
DIN EN 61000-6-4

MTTF [years]

100

Mechanical data

Weight [g]	692
Type of mounting	mounting via screws
Dimensions [mm]	234.2 x 76 x 40.5
Materials	PA glass fibre reinforced

Displays / operating elements

Display

10-segment LED display, red/green 4-digit

Remarks

Pack quantity	1 pcs.

Electrical connection - CAN interface 2

CAN IN	Connector: 2 x DEUTSCH connector

Electrical connection - Inputs

Con. 1...8	Connector: 8 x DEUTSCH connector

Electrical connection - supply / CAN interface 1

X1	Connector: 1 x AMP connector

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR2050-00 — 20.09.2022 —
