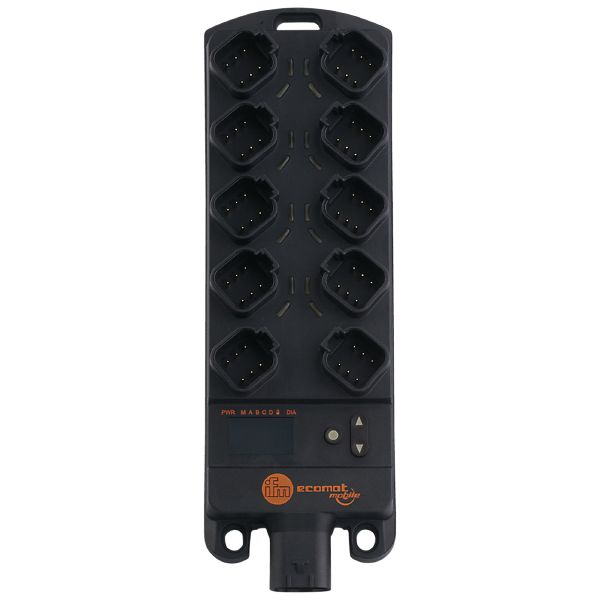

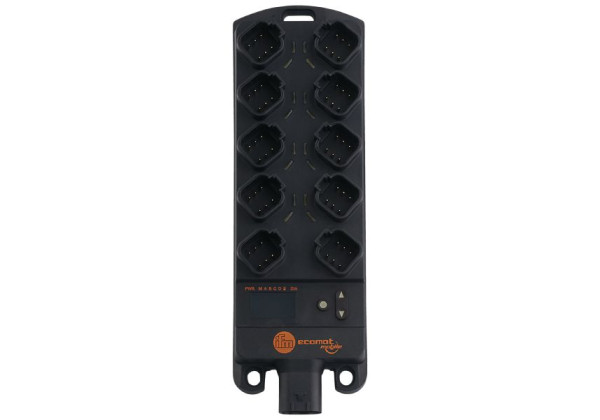

CR2051 I/O module for mobile machines ioControl/Out 16/DT6
Brand: IFM Electronic
Code: CR2051
- Decentralised connection of sensors and actuators
- High-performance CAN interface for various communication tasks
- Programmable to IEC 61131-3 with CODESYS
- High protection rating for the requirements of mobile machines
- With many multifunctional configurable output channels
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|---|
| Reverse polarity protection | yes |
Inputs / outputs
| Total number of inputs and outputs | 16 |
|---|---|
| Number of inputs and outputs | Number of digital outputs: 16 |
Outputs
| Total number of outputs | 16 |
|---|---|
| Number of digital outputs | 16 |
| Short-circuit protection | yes |
| Number of PWM outputs | 16 |
| Number of PWM-I outputs | 8 |
Software / programming
| PLC function to IEC 61131-3 | yes |
|---|
Interfaces
| Number of CAN interfaces | 2 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| MTTF [years] | 96 |
Mechanical data
| Weight [g] | 711 |
|---|---|
| Type of mounting | mounting via screws |
| Dimensions [mm] | 234.2 x 76 x 40.5 |
| Materials | PA glass fibre reinforced |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR2051-00 — 20.09.2022 —
