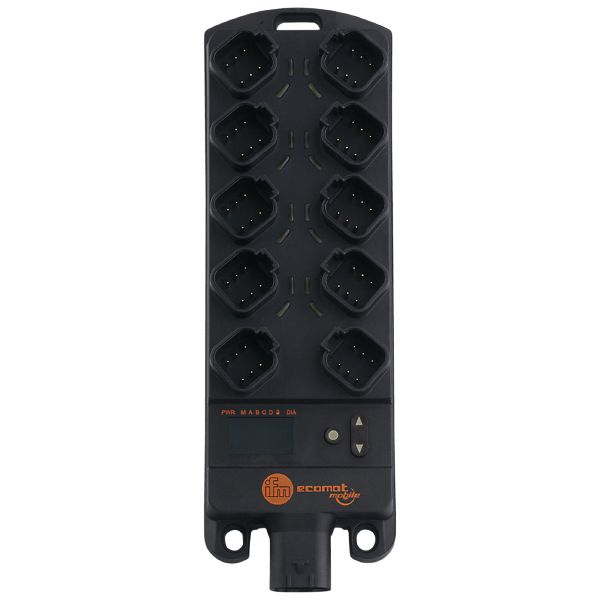

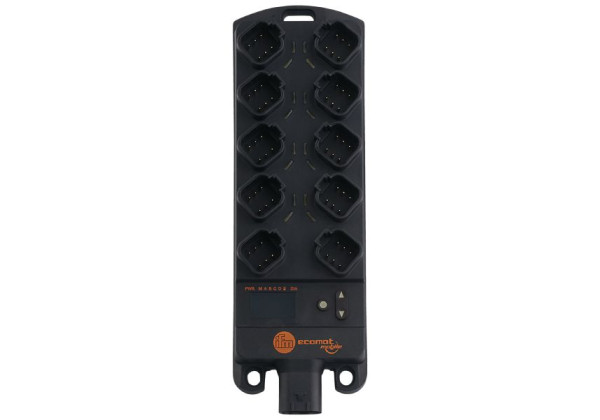

CR2052 I/O module for mobile machines ioControl/In 8/Out 8/DT6

Code: CR2052

Decentralised connection of sensors and actuators
With many multifunctional configurable input and output channels
High-performance CAN interface for various communication tasks
Programmable to IEC 61131-3 with CODESYS
High protection rating for the requirements of mobile machines

Electrical data

Operating voltage [V]	8...32 DC
Reverse polarity protection	yes

Inputs / outputs

Total number of inputs and outputs	16
Number of inputs and outputs	Number of digital inputs: 8; Number of analogue inputs: 4; Number of frequency inputs: 4; Number of resistor inputs: 4; Number of digital outputs: 8

Inputs

Total number of inputs	8
Number of frequency inputs	4
Number of resistor inputs	4
Number of digital inputs	8
Number of analogue inputs	4
Analogue input (current) [mA]	0...20
Analogue input (voltage) [V]	0...32

Outputs

Total number of outputs	8
Number of digital outputs	8
Short-circuit protection	yes
Number of PWM outputs	8
Number of PWM-I outputs	8

Software / programming

Parameter setting options	input/output functions
PLC function to IEC 61131-3	yes

Interfaces

Number of CAN interfaces	2

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Protection	IP 65; IP 67

Tests / approvals

EMC

DIN EN 61000-6-2
DIN EN 61000-6-4

MTTF [years]

Mechanical data

Weight [g]	707.5
Type of mounting	mounting via screws
Dimensions [mm]	234.2 x 76 x 40.5
Materials	PA glass fibre reinforced

Displays / operating elements

Display

10-segment LED display, red/green 4-digit

Remarks

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR2052-00 — 20.09.2022 —
