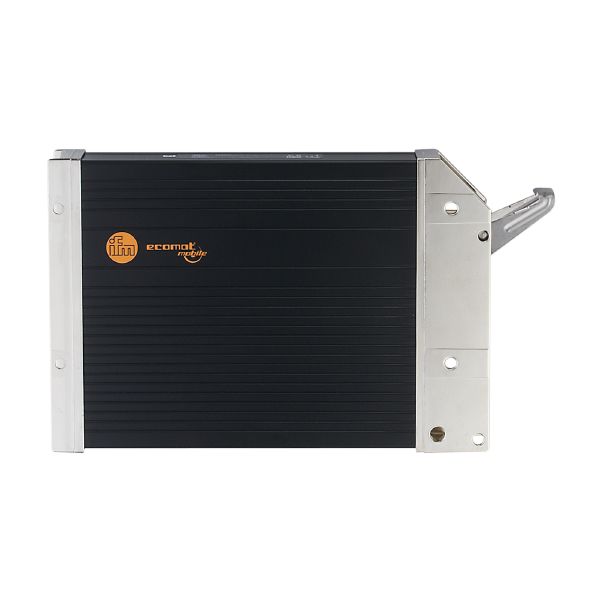

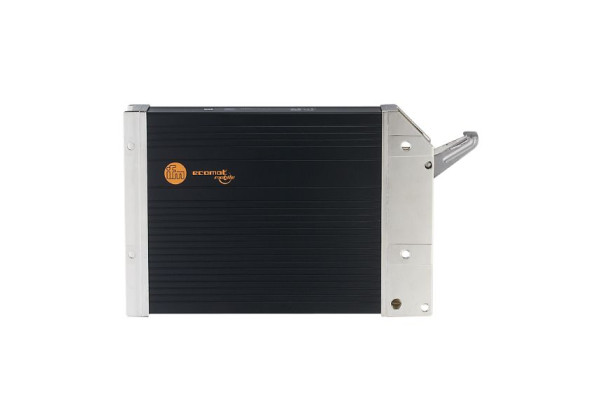

CR2520 I/O module for mobile machines R360/HIGH CURRENT MODULE/CAN
Brand: IFM Electronic
Code: CR2520
- Power outputs with parameterisable H-bridges
- Decentralised connection of sensors and actuators
- With many multifunctional configurable input and output channels
- High-performance CAN interface for various communication tasks
- High protection rating for the requirements of mobile machines
Electrical data
| Operating voltage [V] | 10...32 DC |
|---|
Inputs / outputs
| Total number of inputs and outputs | 30 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 15; Number of analogue inputs: 4; Number of digital outputs: 15 |
Inputs
| Number of digital inputs | 15 |
|---|---|
| Number of analogue inputs | 4 |
| Analogue input (current) [mA] | 0...20 |
| Analogue input (voltage) [V] | 0...32 |
Outputs
| Number of digital outputs | 15 |
|---|---|
| Number of PWM outputs | 3 |
| Number of outputs with H-bridge | 4 |
| Number of high-current outputs | 4 |
Software / programming
| Parameter setting options | input/output functions |
|---|
Interfaces
| Number of CAN interfaces | 1 |
|---|
Tests / approvals
| MTTF [years] | 66 |
|---|
Mechanical data
| Weight [g] | 1463 |
|---|---|
| Dimensions [mm] | 153 x 43 x 241 |
Remarks
| Notes | Please do not use for new projects. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| AMP connector: |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR2520-00 — 13.04.2023 —
