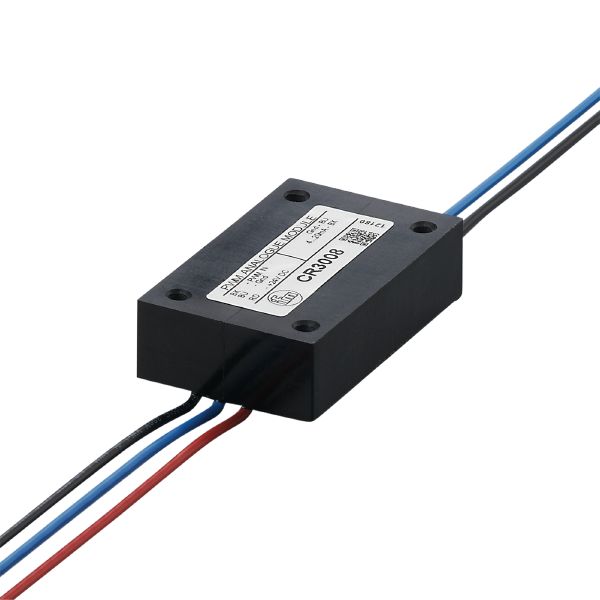

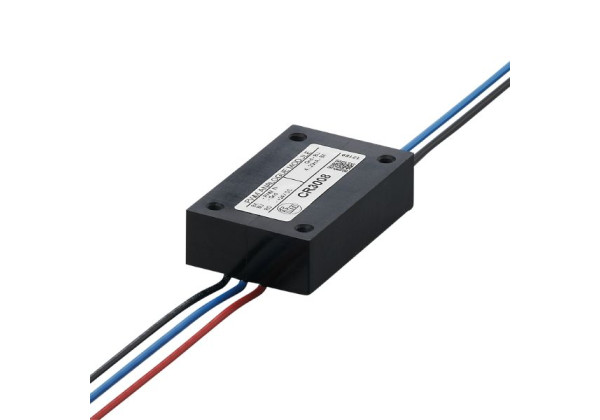

CR3008 I/O module for mobile machines R360/MODULE/PWM/4...20mA
Brand: IFM Electronic
Code: CR3008
- Conversion of a PWM signal into an analogue output signal
- Precise linearised current output
- Simple connection via strands with wire end ferrules
- For mobile vehicles
- Wide operating temperature range
Application
| Design | housing module |
|---|
Electrical data
| Operating voltage [V] | 19.2...28.8 DC |
|---|---|
| Current consumption [mA] | < 30 |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Inputs
| Number of PWM inputs | 1; (24 V DC ± 20 % PWM signal) |
|---|---|
| PWM frequency inputs [Hz] | 122 |
Outputs
| Number of analogue outputs | 1 |
|---|---|
| Analogue current output [mA] | 4...20 |
| Max. load [Ω] | 600 |
Operating conditions
| Ambient temperature [°C] | -40...85 | ||
|---|---|---|---|
| Note on ambient temperature |
| ||
| Protection | IP 67 |
Mechanical data
| Weight [g] | 72 |
|---|---|
| Dimensions [mm] | 54 x 34 x 15 |
| Materials | polyamide glass fibre reinforced |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| input | Cable: 0.28 m; / Core ends with wire end sleeves |
|---|
Diagrams and graphs
| | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR3008-01 — 11.12.2019 —
