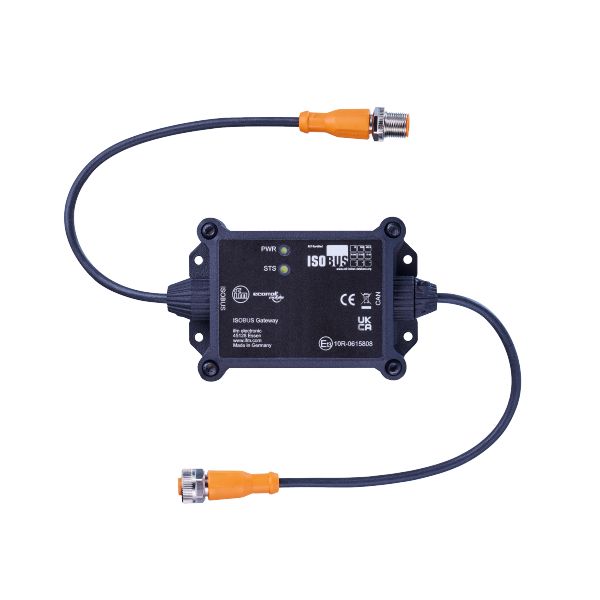

CR3121 ISOBUS gateway ISOBUS Gateway/VT
Brand: IFM Electronic
Code: CR3121
- Safe communication between attachment and tractor unit
- Pre-loaded ISOBUS object pool for display on the universal terminal (UT)
- Simple configuration via CODESYS using ISOBUS libraries
- Quick and easy implementation without additional licence costs
- Certified by the AEF (Agriculture Industry Electronics Foundation)
Electrical data
| Operating voltage [V] | 12...27 DC |
|---|---|
| Current consumption [mA] | 11...48 |
Interfaces
| Communication interface | CAN |
|---|---|
| Number of CAN interfaces | 2 |
| Transmission rate | 250 (125...1000) kBaud |
|---|---|
| Interface | CAN Interface 2.0 A/B ISO 11898 |
| Terminating resistor | yes; (internal ; 120 Ohm; cannot be deactivated) |
| Transmission rate | 250 kBaud |
|---|---|
| Interface | CAN Interface ISO 11783 |
| Terminating resistor | no |
Operating conditions
| Ambient temperature [°C] | -40...80 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 190.1 |
|---|---|
| Type of mounting | panel / surface |
| Dimensions [mm] | 72 x 104 x 29 |
| Materials | housing: PA 12 black |
Displays / operating elements
| Display |
|
|---|
Hardware
| Processor | ARM Cortex M4 32 bit |
|---|---|
| Program memory | 1,5 MB Flash |
| Working memory | RAM: 320 kB FRAM: 16 kB |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - CAN
| Connector: 1 x M12; coding: A |
Electrical connection - ISOBUS
| Connector: 1 x M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR3121-00 — 01.06.2023 —
