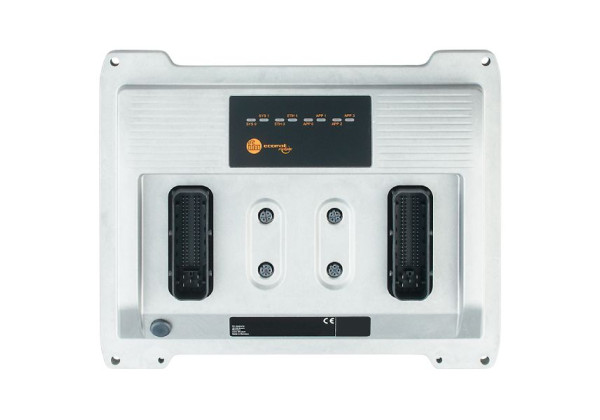

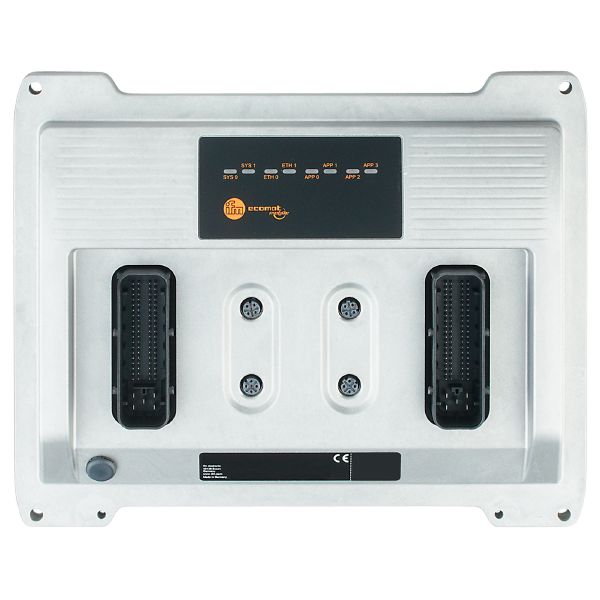

CR720S ecomatController ecomatController/98
Brand: IFM Electronic
Code: CR720S
- powerful 32 bit triple core controllers with large application memory
- Certified as safety controller with CANopen Safety support
- Scalable inputs and outputs for standard and safety applications
- High-performance CAN and Ethernet interfaces for various communication tasks
- Freely programmable to IEC 61131-3 with CODESYS 3.5
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|---|
| Current consumption [mA] | < 400 |
| Reverse polarity protection | yes |
Inputs / outputs
| Total number of inputs and outputs | 98 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 60; Number of analogue inputs: 24; Number of frequency inputs: 16; Number of resistor inputs: 4; Number of digital outputs: 36; Number of analogue outputs: 2 |
Inputs
| Number of frequency inputs | 16 |
|---|---|
| Number of resistor inputs | 4 |
| Number of digital inputs | 60 |
| Number of analogue inputs | 24 |
| Analogue input (current) [mA] | 0...20 |
| Analogue input (voltage) [V] | 0...32 |
Outputs
| Number of digital outputs | 36 |
|---|---|
| Number of analogue outputs | 2 |
| Analogue voltage output [V] | 0...10 |
| Short-circuit protection | yes |
| Number of PWM outputs | 36 |
| Number of PWM-I outputs | 24 |
| Number of outputs with H-bridge | 4 |
Software / programming
| Parameter setting options | input/output functions |
|---|---|
| PLC function to IEC 61131-3 | yes |
Interfaces
| Number of CAN interfaces | 4 |
|---|---|
| Number of Ethernet interfaces | 1 |
| Number of R232 interfaces | 1 |
Operating conditions
| Storage temperature [°C] | -40...85 |
|---|---|
| Protection | IP 65; IP 67; (in conjunction with a corresponding connector) |
Safety classification
| Complies with the requirements |
|
|---|
Mechanical data
| Weight [g] | 1966.5 |
|---|---|
| Type of mounting | free-standing |
| Dimensions [mm] | 219 x 47 x 271 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — CR720S — 14.03.2022 —
