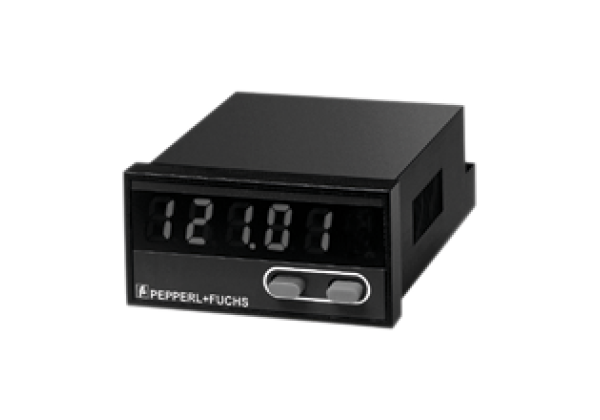

Process indicator DA5-IU-C
Brand: Pepperl+Fuchs
Code: DA5-IU-C
Bright, high contrast 5-digit LED indicator, Leading zero suppression, Adjustable decimal point, Maximum- and minimium-value display, Integrated counter with specific scaling
Datasheet excerpt: Technical data of DA5-IU-C
| Product Description |
|---|
| Digital display unit |
| General specifications | ||
|---|---|---|
| Measuring frequency | 10 measurements per second | |
| Pre-selection | none | |
| Data storage | 106 storage cycles or 10 years, EEPROM | |
| Programming | keypad-driven menu | |
| Indicators/operating means | ||
| Type | 7-segment LED display, red | |
| Number of digits | 5 | |
| Display value | digit height 8 mm | |
| Key interlock | - | |
| Display interval | -19999... 99999 | |
| Decimal point | freely adjustable | |
| Resolution | 14 Bit | |
| Scale factor | via linear characteristic curve | |
| Reset | maximum value, manually | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Power consumption | 1.5 VA | |
| Input | ||
| Impedance | 1 MOhm | |
| Voltage | max. 30 DC | |
| Analog voltage input | 0... 10 V / 2... 10 V DC | |
| Analog current input | 0... 20 mA / 4... 20 mA | |
| Accuracy | < 0.1 % of the total measuring range at 20 °C | |
| Temperature influence | < 70 ppm/K ambient conditions | |
| Ambient conditions | ||
| Ambient temperature | -20... 65 °C (-4... 149 °F) | |
| Storage temperature | -25... 70 °C (-13... 158 °F) | |
| Relative humidity | ≤ 80 % (noncondensing) | |
| Mechanical specifications | ||
| Degree of protection | IP65 (front) | |
| Connection | 7-pin screw terminal max. core cross section 0.34... 1.5 mm2 | |
| Mass | approx. 50 g | |
| Dimensions | 48 mm x 24 mm x 65 mm | |
| Mounting | latch fastener/mounting frame | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27210301 |
| ECLASS 12.0 | 27210301 |
| ECLASS 11.0 | 27210301 |
| ECLASS 10.0.1 | 27210301 |
| ECLASS 9.0 | 27210301 |
| ECLASS 8.0 | 27210301 |
| ECLASS 5.1 | 27210301 |
| ETIM 9.0 | EC002300 |
| ETIM 8.0 | EC002300 |
| ETIM 7.0 | EC002300 |
| ETIM 6.0 | EC002300 |
| ETIM 5.0 | EC000677 |
| UNSPSC 12.1 | 43211906 |
